Warn - M12-S Heavyweight Winch (97720)
SKU :210000002682 (012748977209)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW

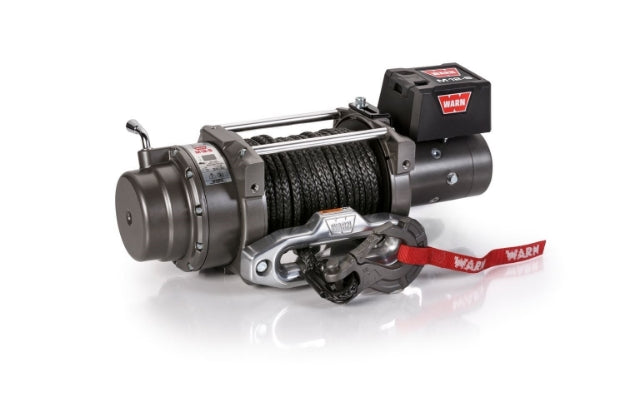

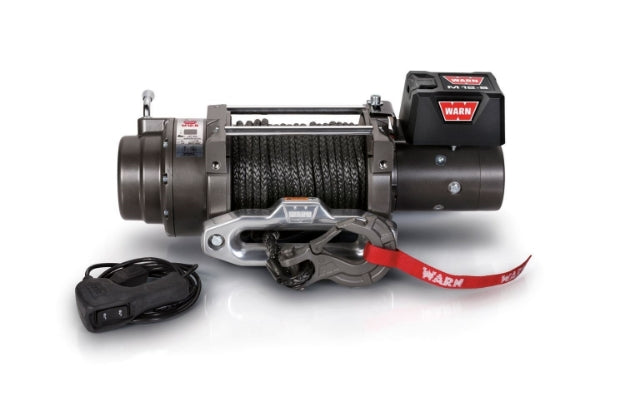

This Warn Industries M12-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 100 feet Spydura synthetic rope. Note: This Winch will require winch mount for proper installation.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
The WARN combines a proven WARN large-frame winch with 100 Foot of 3/8 Inch state-of-the-art Spydura® synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch's 12,000 Pounds pulling capacity makes it great for large pickups and heavier SUVs.
- 12,000 Pounds Capacity
- Large-Frame Winch Architecture Mounts Feet Forward
- Contactor Control For The Ultimate In Reliable Electronics
- Powerful, Efficient Series-Wound Motor
- Durable, Smooth Three-Stage Planetary Gear Train
- Best-In-Class Cone Brake
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications:
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 261:1 |
| Free Spooling | Yes |
| Brake Type | Automatic Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Wired |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |

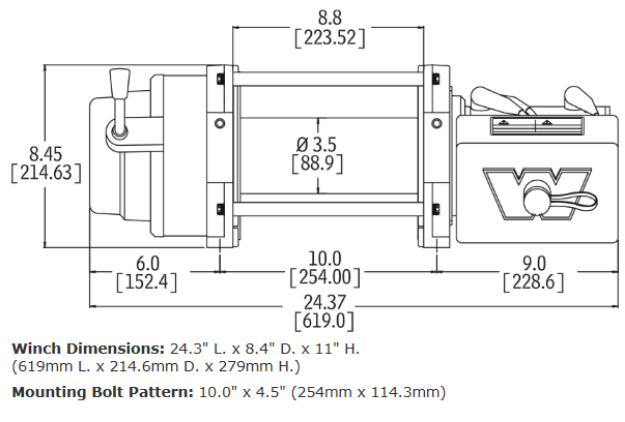

| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Gray |

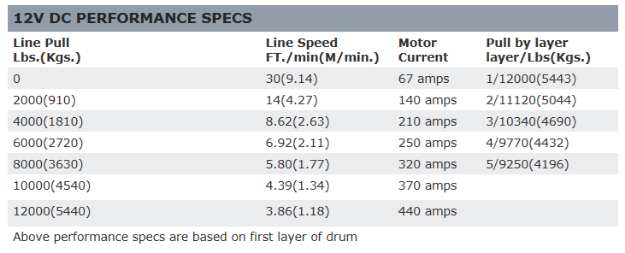

| Max Line Pull/ Line Speed | 12000 Pound/ 3.9 Feet Per Minute |
| Max Amp Draw/ Line Pull | 440 Amp Draw/ 12000 Pound |
