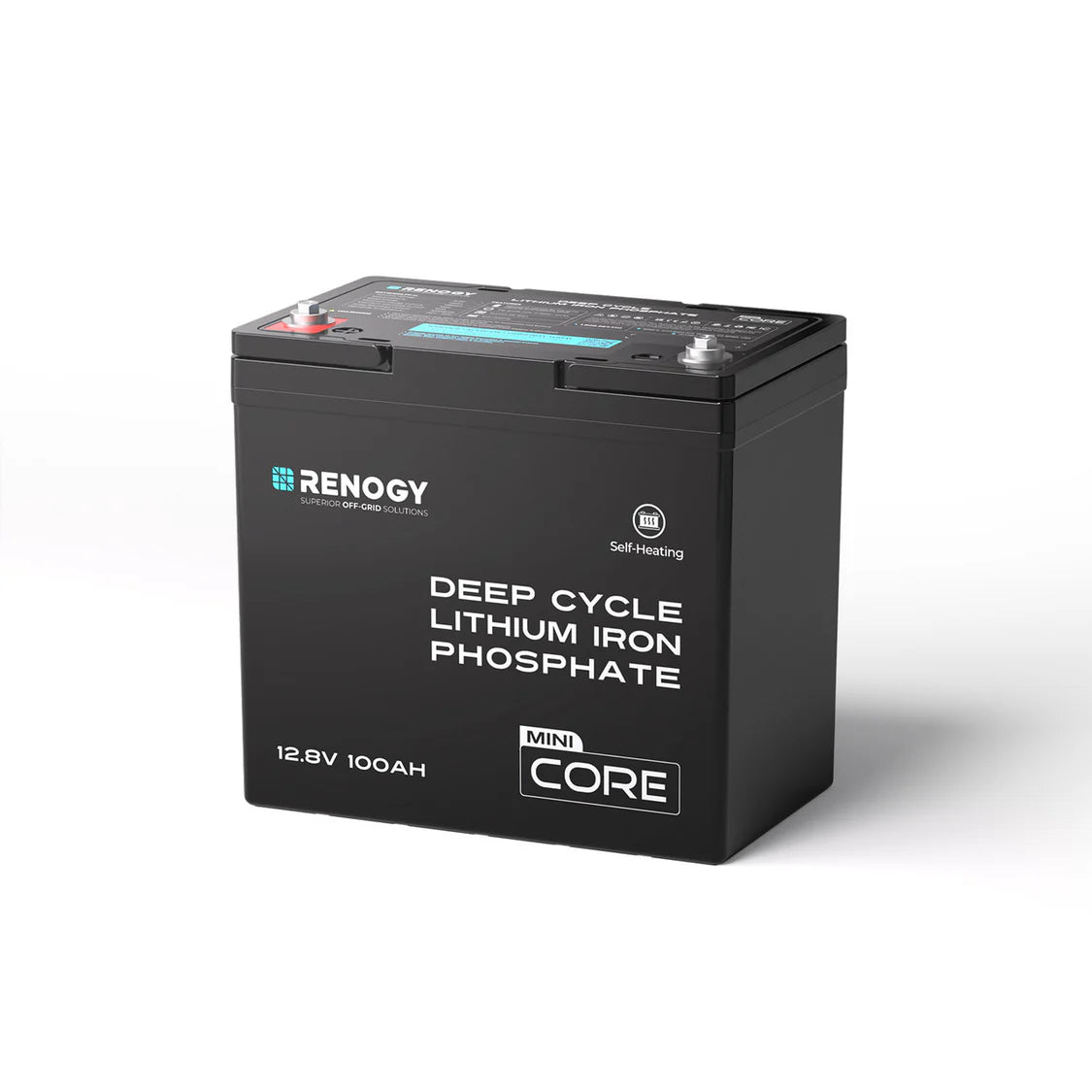

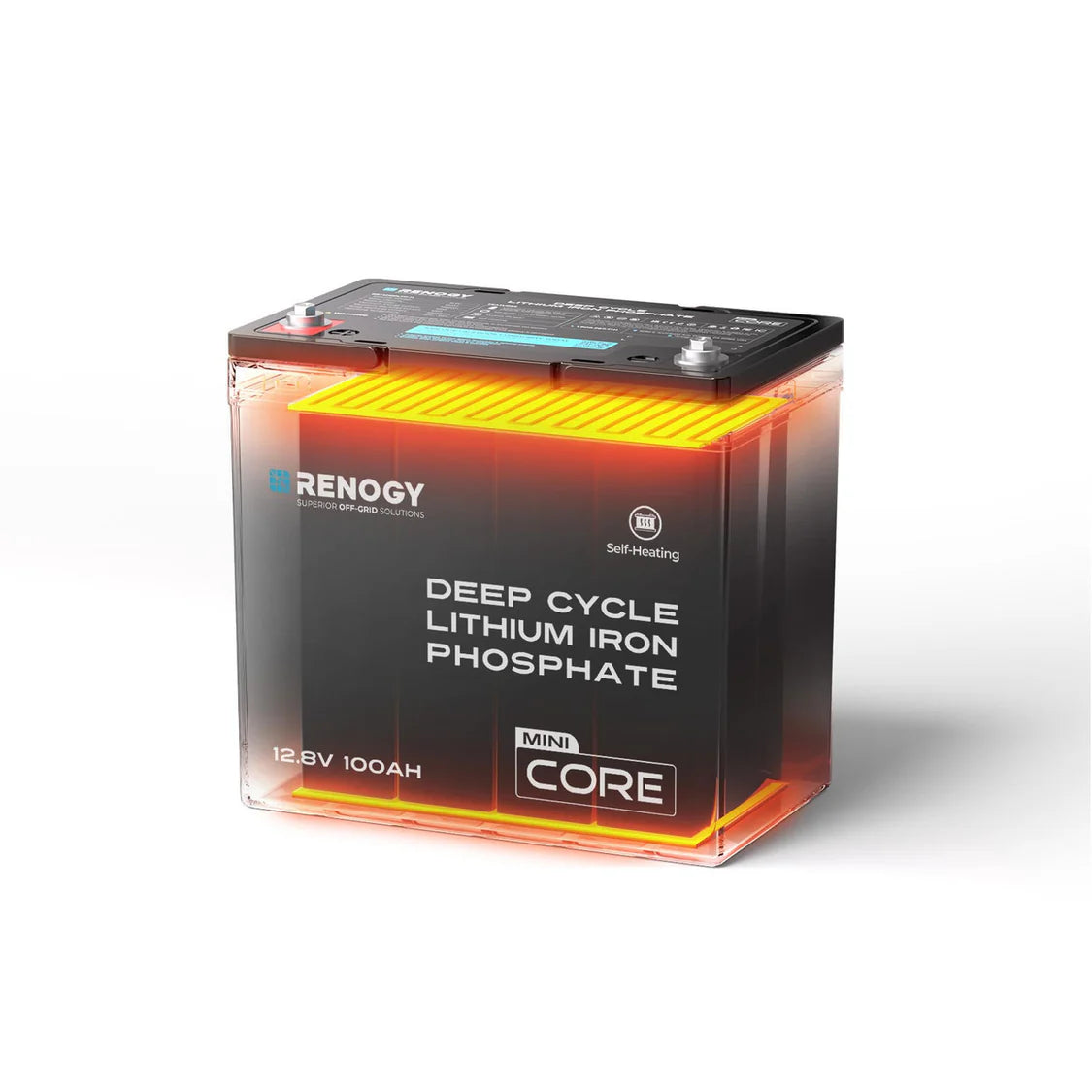

Renogy - Core Mini - DuoHeat Tech 12V 100Ah Lithium Iron Phosphate Battery (RBT12100LFP-H-S-US)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW
- Group 22NF size, 45% smaller than similar batteries
- Dual heating pads provide 110W, heating 40% faster

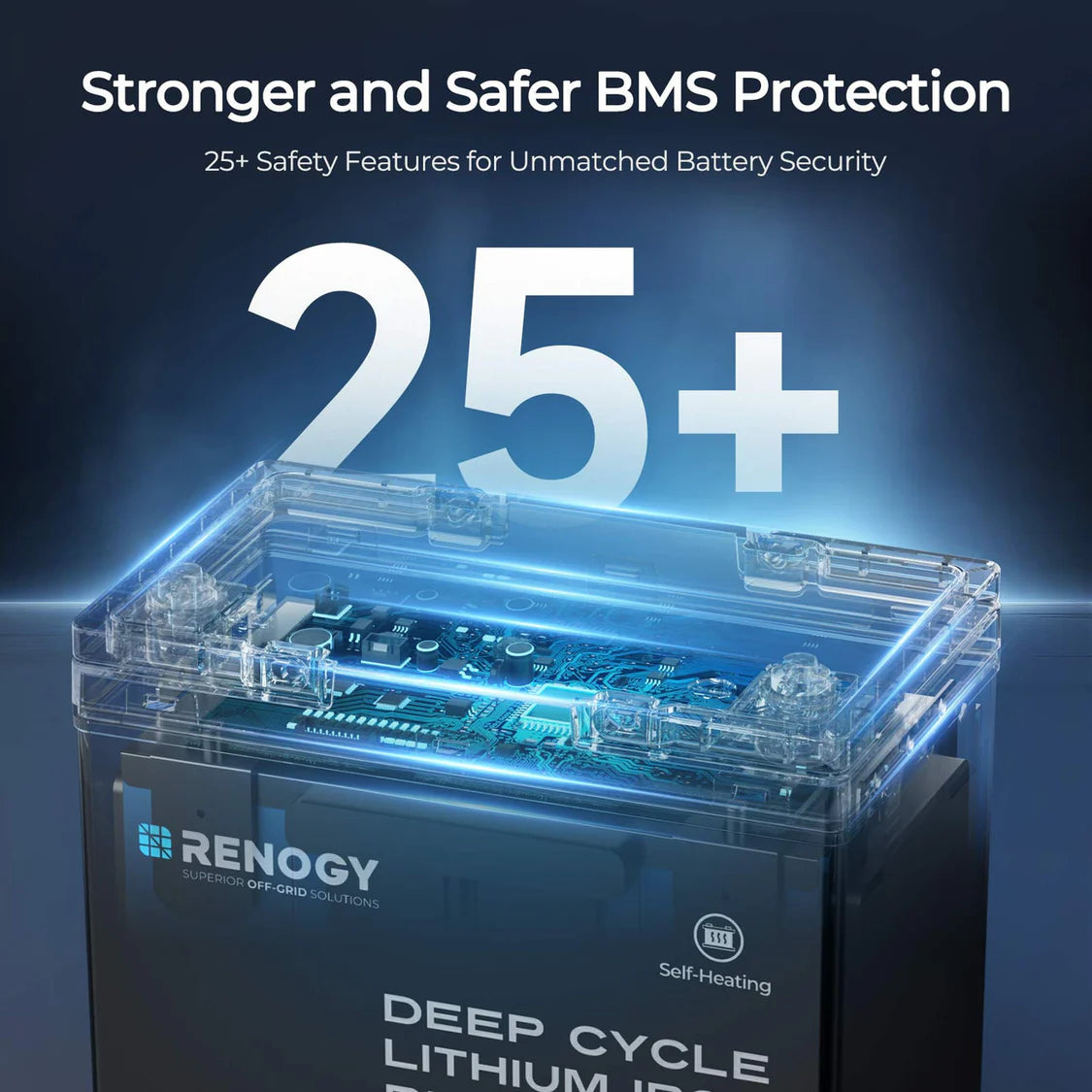

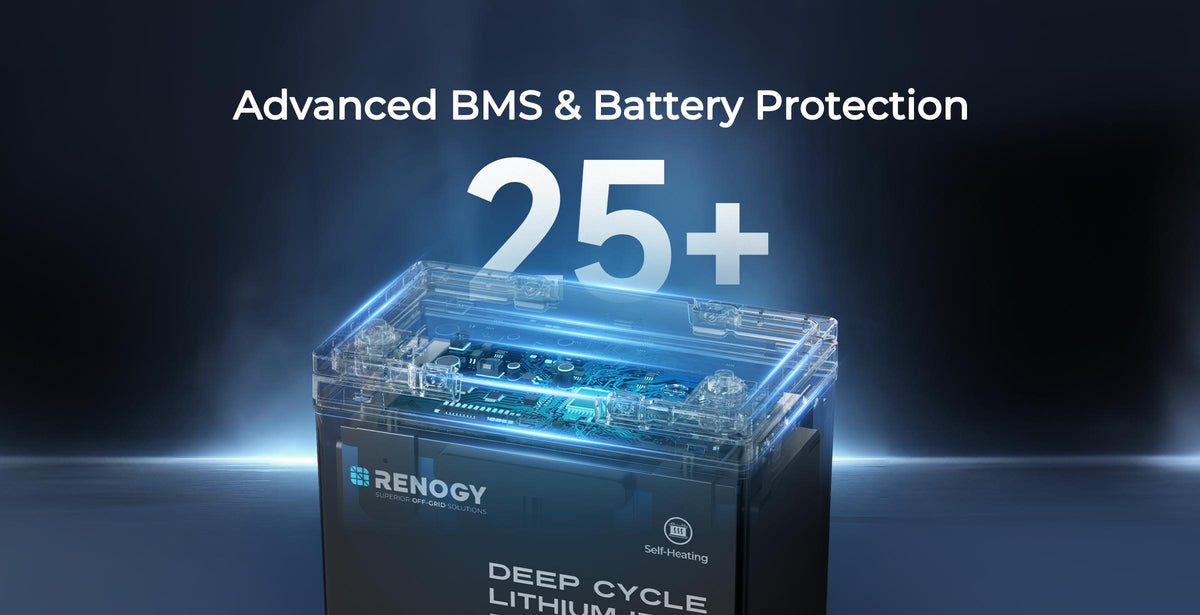

- 25+ safety features and 100A BMS ensure secure operation

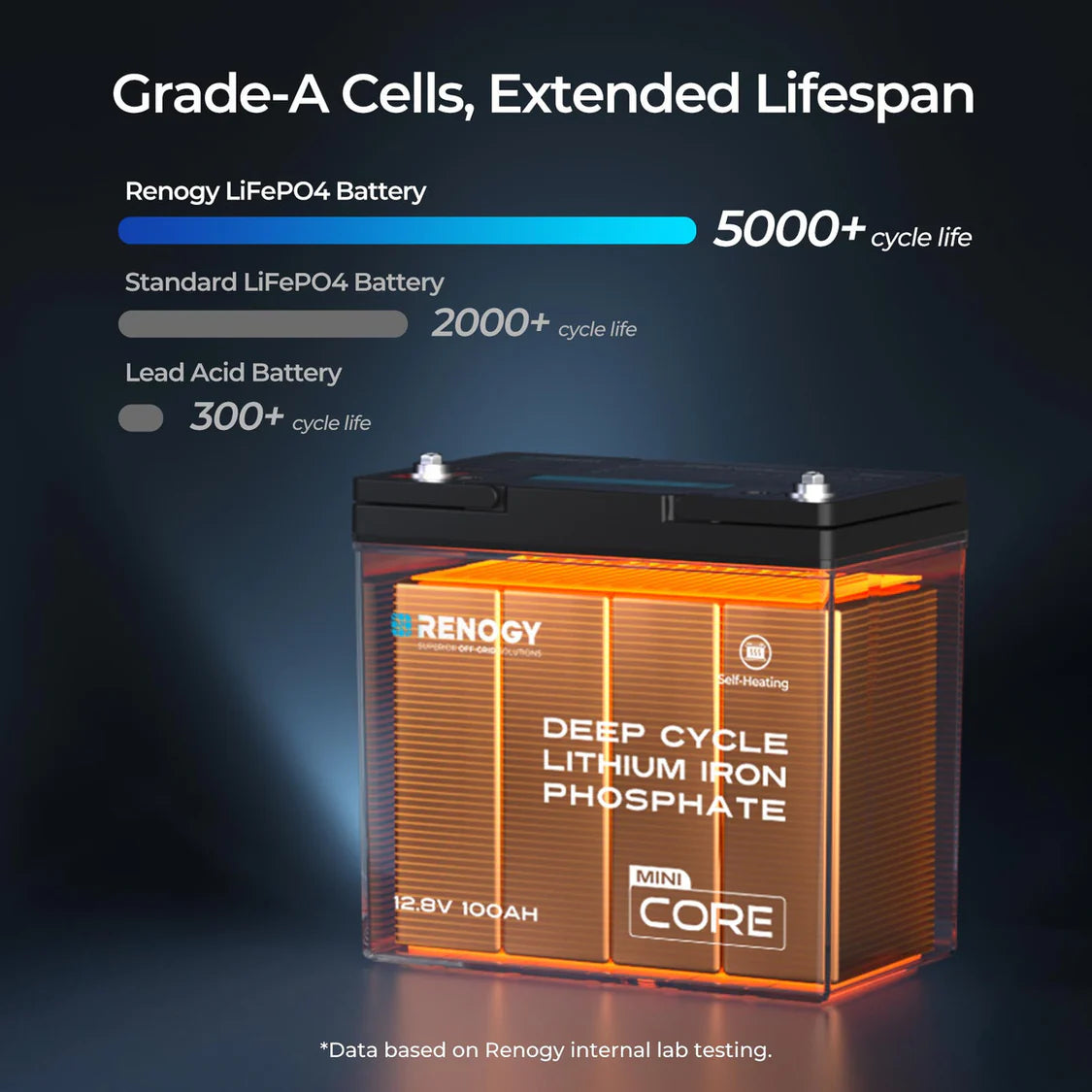

- Grade-A LiFePO4 cells deliver 5000+ cycles at 80% DOD
- 5-year warranty with certifications like FCC, CE, ROHS and more
- Operates from -22°F to 131°F with weatherproof IP65 casing
Top Reasons to Love Renogy 12V 100Ah LiFePO4
Conquer the Cold, Power Your Journey

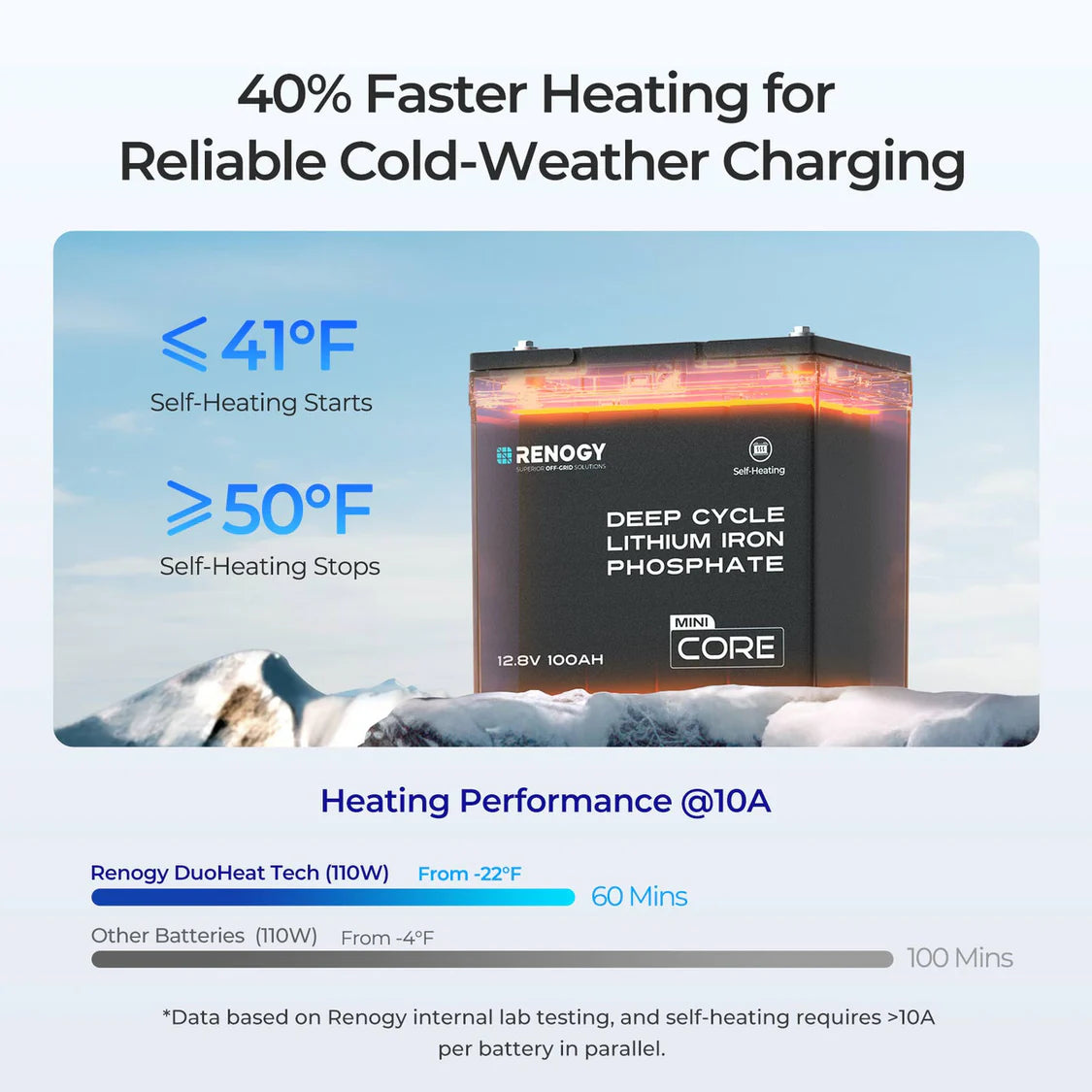

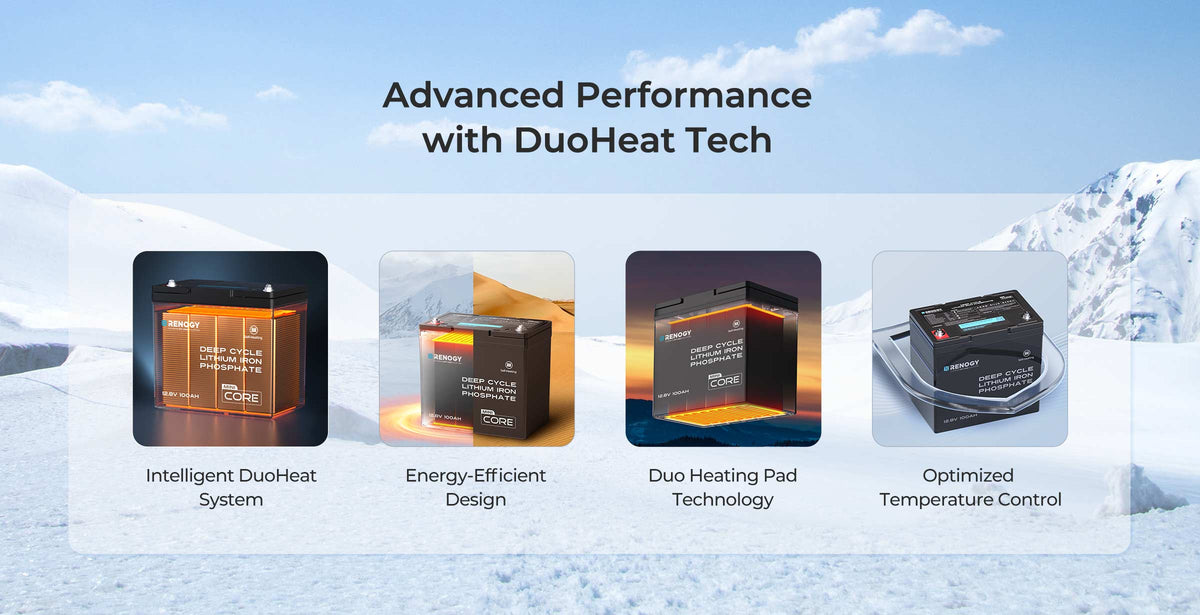

The Renogy 12V 100Ah LiFePO4 Battery with DuoHeat Tech offers 110W of dual-heating power, providing double the efficiency of conventional designs. Enjoy 40% faster heating and a 13% higher temperature tolerance, reaching ready-to-charge status from as low as -22°F (-30°C) in just 60 minutes. Don’t let the cold weather hold back your adventure.
Harness Maximum Power in Minimum Space

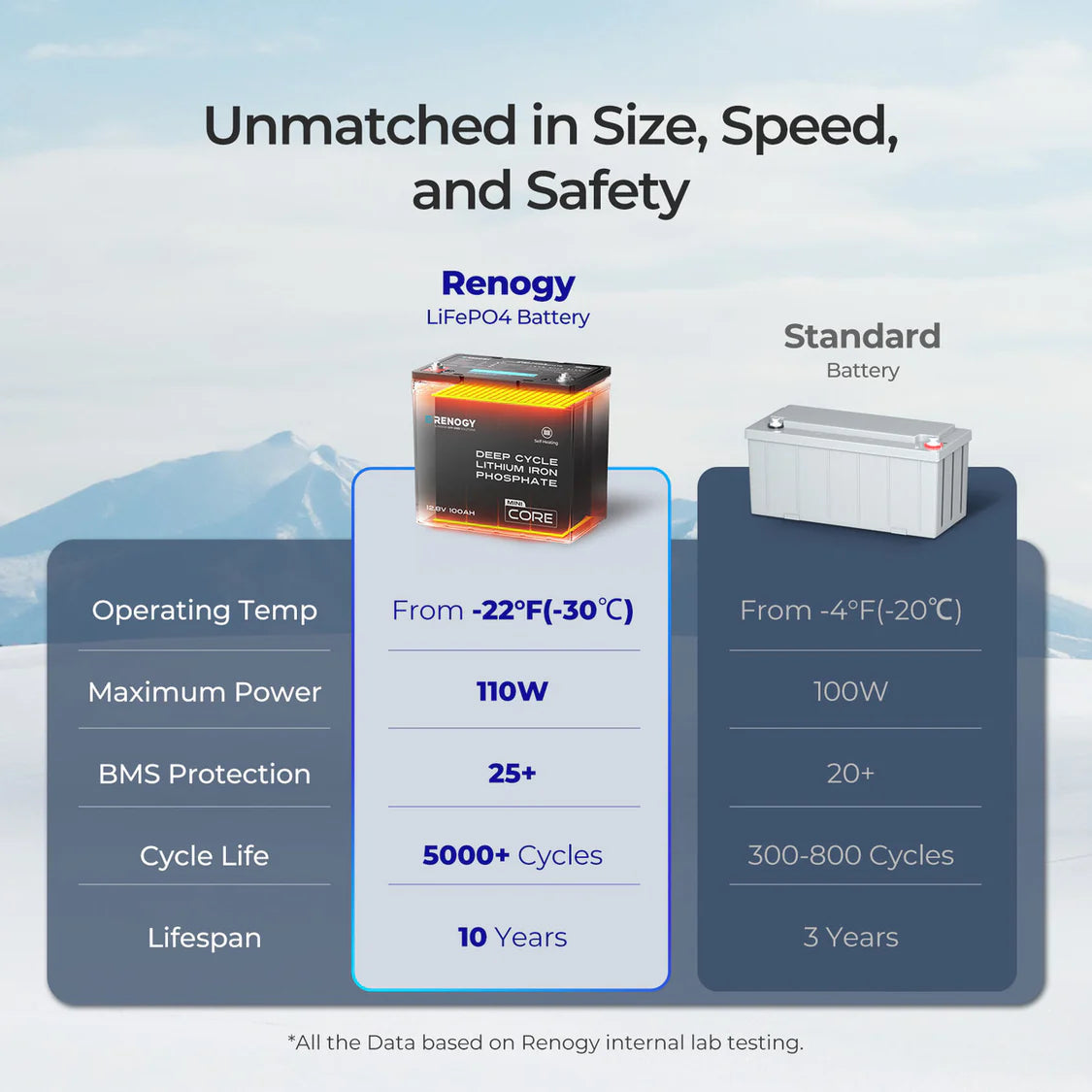

Experience exceptional performance in a 45% smaller package. The Renogy 12V 100Ah Core Series LiFePO4 Battery delivers heavyweight power in a lightweight design, weighing 11% less than standard batteries. Get more space for your adventures and more power for your journey.
Up to 20.48 kWh of Scalable Power

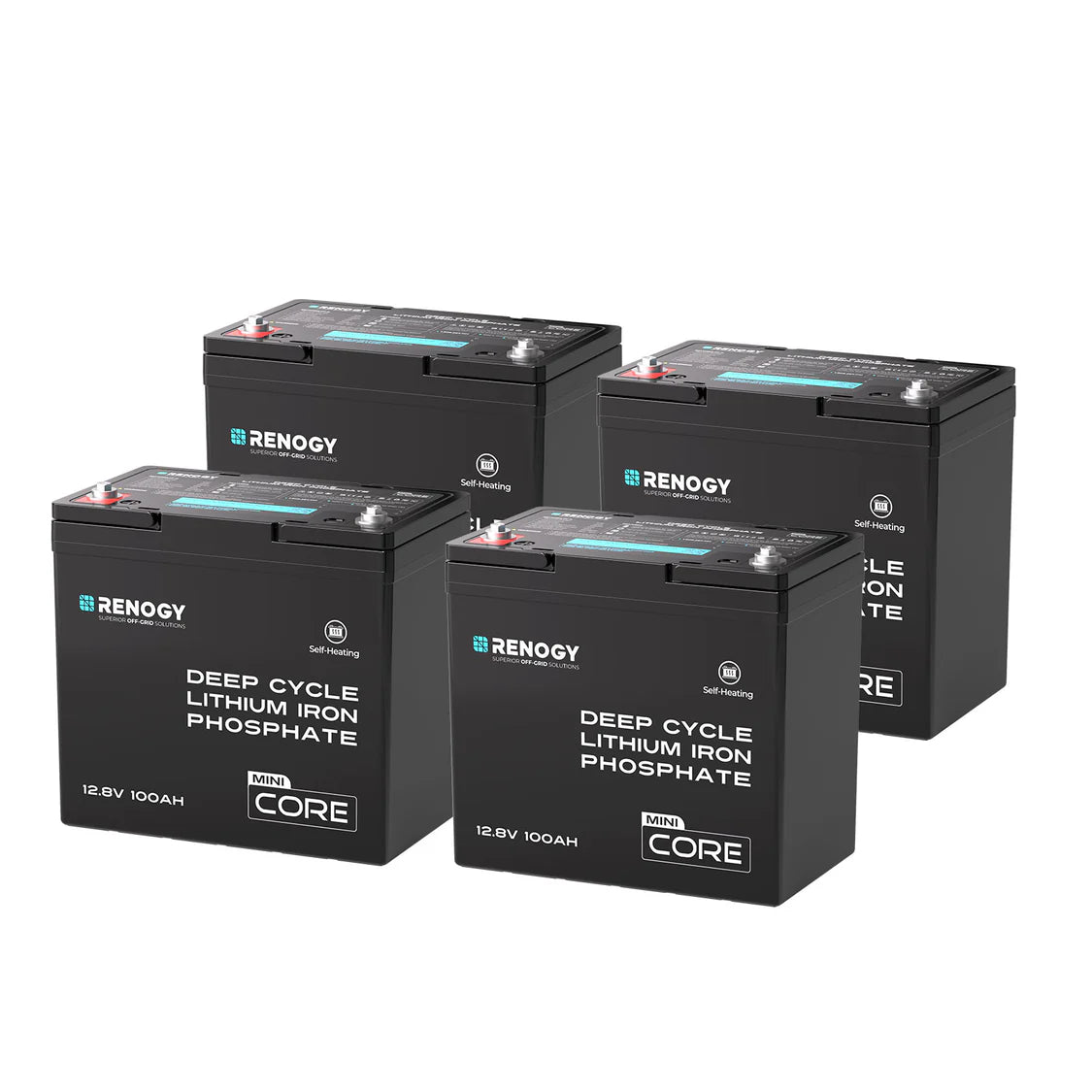

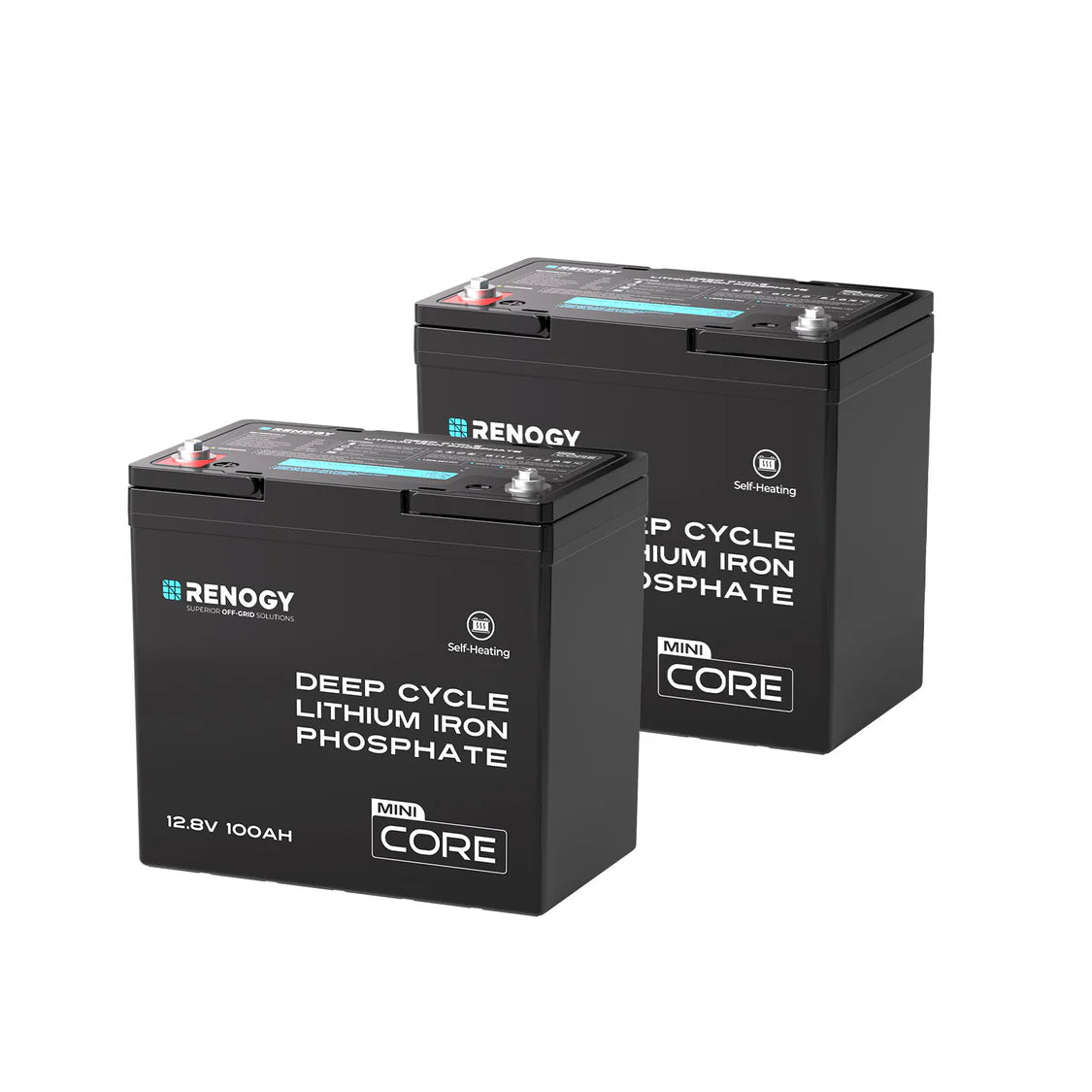

Connect up to four batteries in series or parallel configurations for a tailored solution that meets your exact needs. Flexible installation options ensure you have the right power for any adventure.
- Renogy Core Mini 12V 100Ah LiFePO4 Battery with DuoHeat Tech x 1
- M8 × 1.25 × 12 mm Terminal Bolts x 2
- Insulating Sleeve x 2
- User Manual x 1
| Category | Specification |
|---|---|
| Battery Type | Lithium Iron Phosphate |
| Voltage | 12V |
| Rated Capacity | 100Ah (0.5C, 25°C) |
| Voltage Range | 10V to 14.6V |
| Cycle Life (0.5C, 77°F/25°C) | 5000 Cycles (80% DOD) |

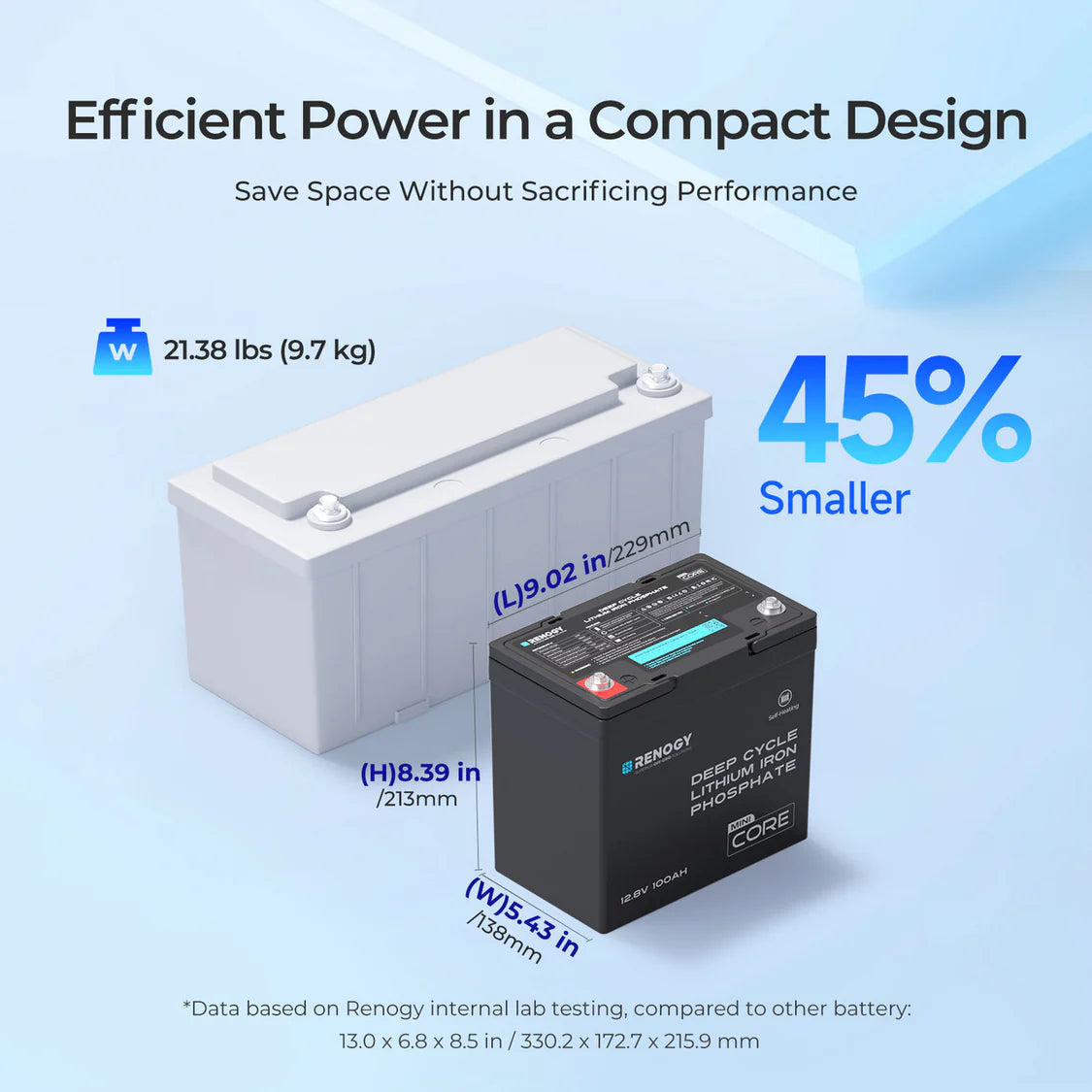

| Dimensions (L × W × H) | 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm) |
| Weight | 21.38 lbs (9.7 kg) |
| Connection Method | Series & Parallel (up to 4S4P) |
| Terminal Bolt Size | M8 x 1.25 × 12 mm |
| Recommended Terminal Torque | 53.1 – 70.8 inch-lbs (6 – 8 N·m) |
| Protection Rating | IP65 (Dust-tight & splash-resistant) |
| Certification | MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA |
| Parameter | Specification |
|---|---|
| Charge Voltage | 14.6V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (for 10 seconds) |

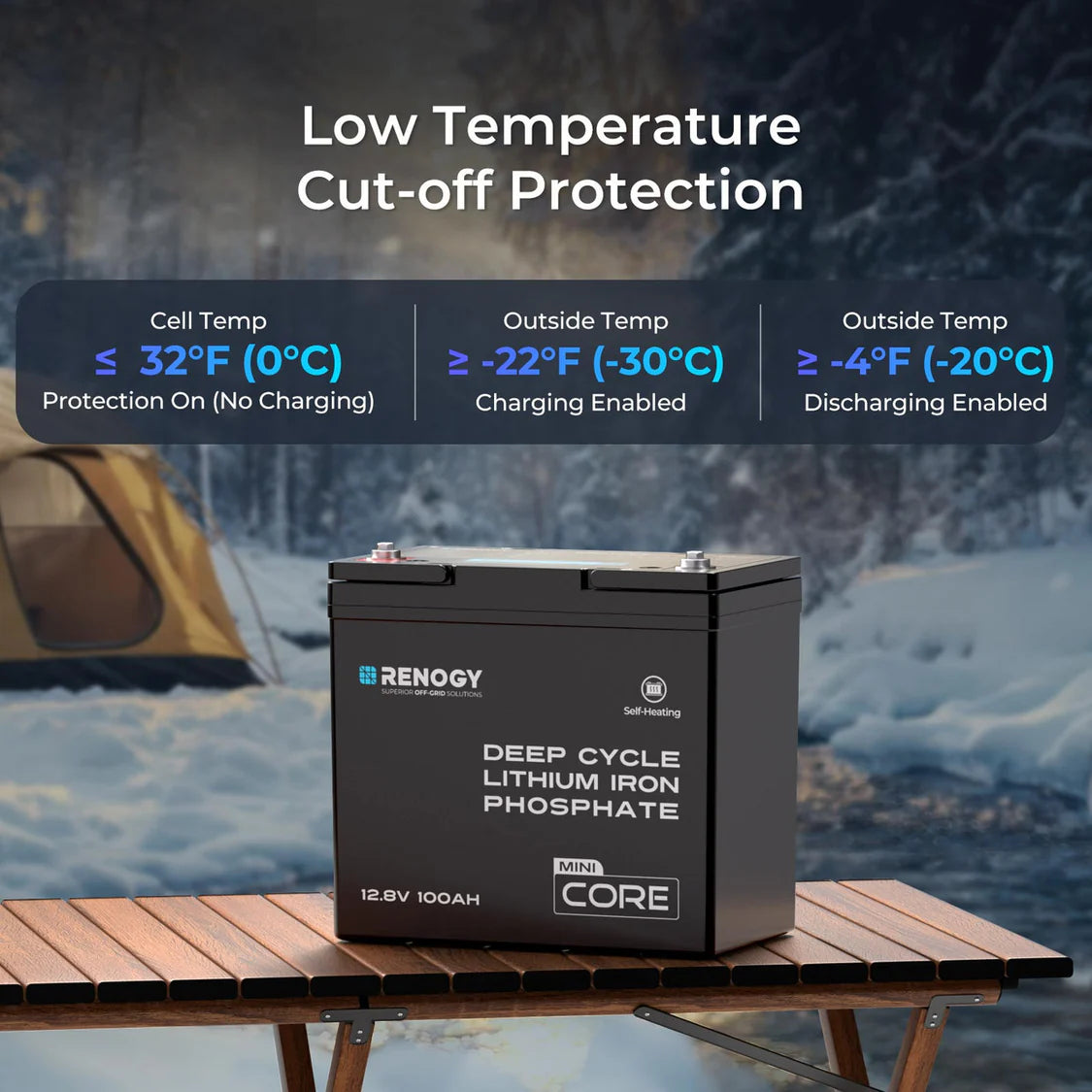

| Charge Temperature Range | -22°F to 131°F (-30°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -4°F to 113°F (-20°C to 45°C) |
| Operation Relative Humidity | 10% to 95% |
| Type | Coverage |
|---|---|
| Material and Workmanship Warranty | 5 Years |
