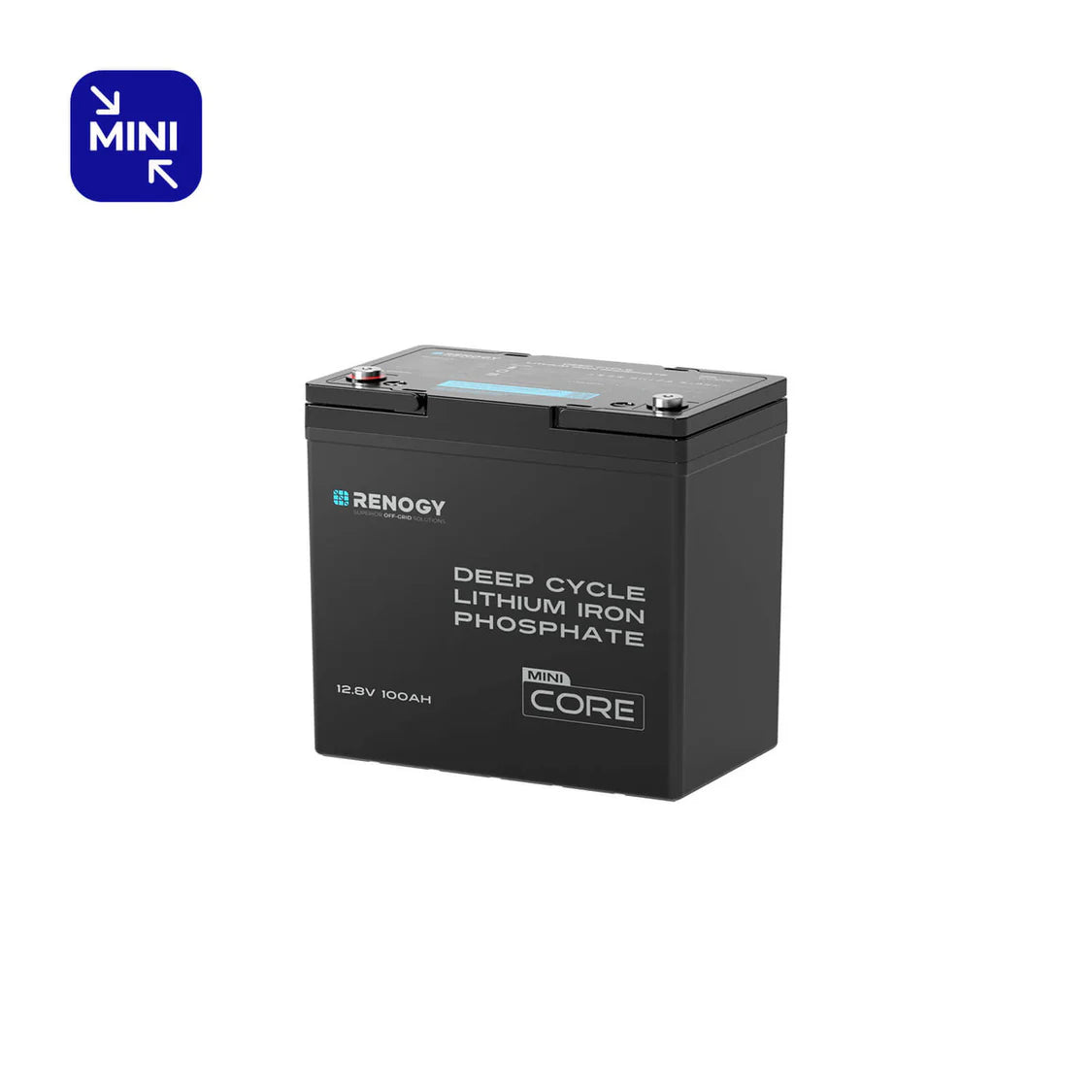

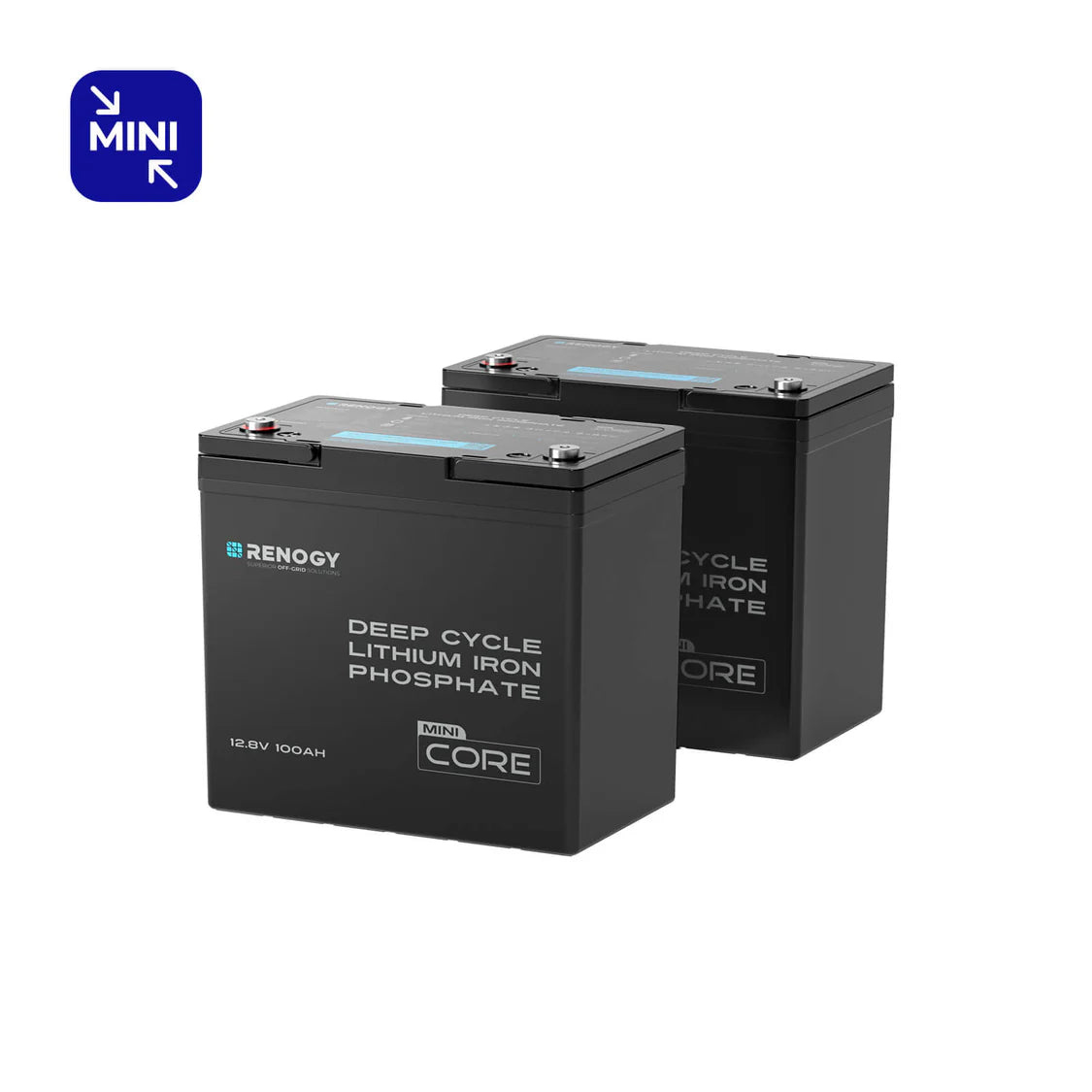

Renogy - Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery (RBT12100LFP-M-US)
Shipping calculated at checkout.
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW
- The smallest 12.8V 100Ah LFP Battery (Group 22NF) in Renogy's lineup

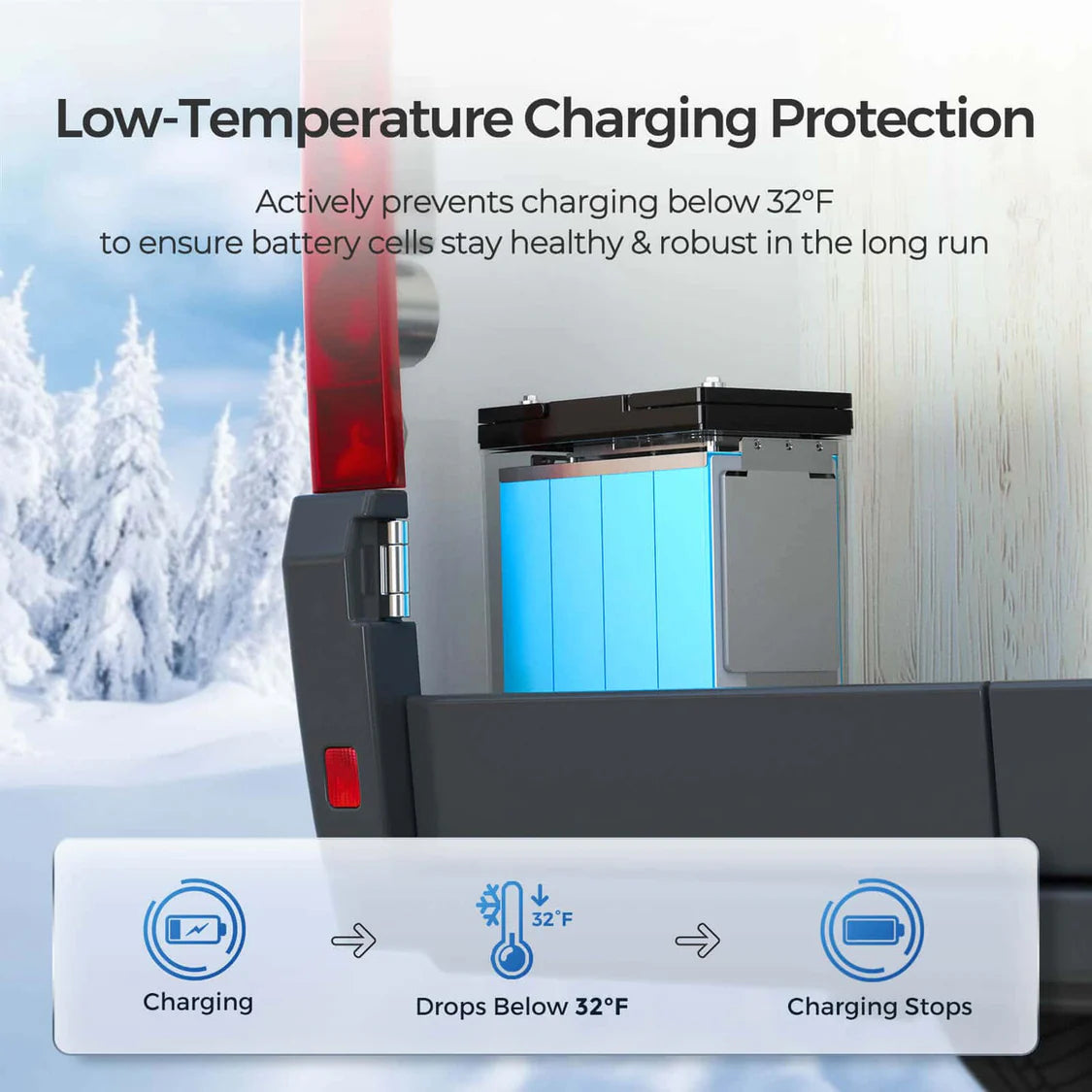

- Built-in low-temperature charging cut-off ensures safe winter operation

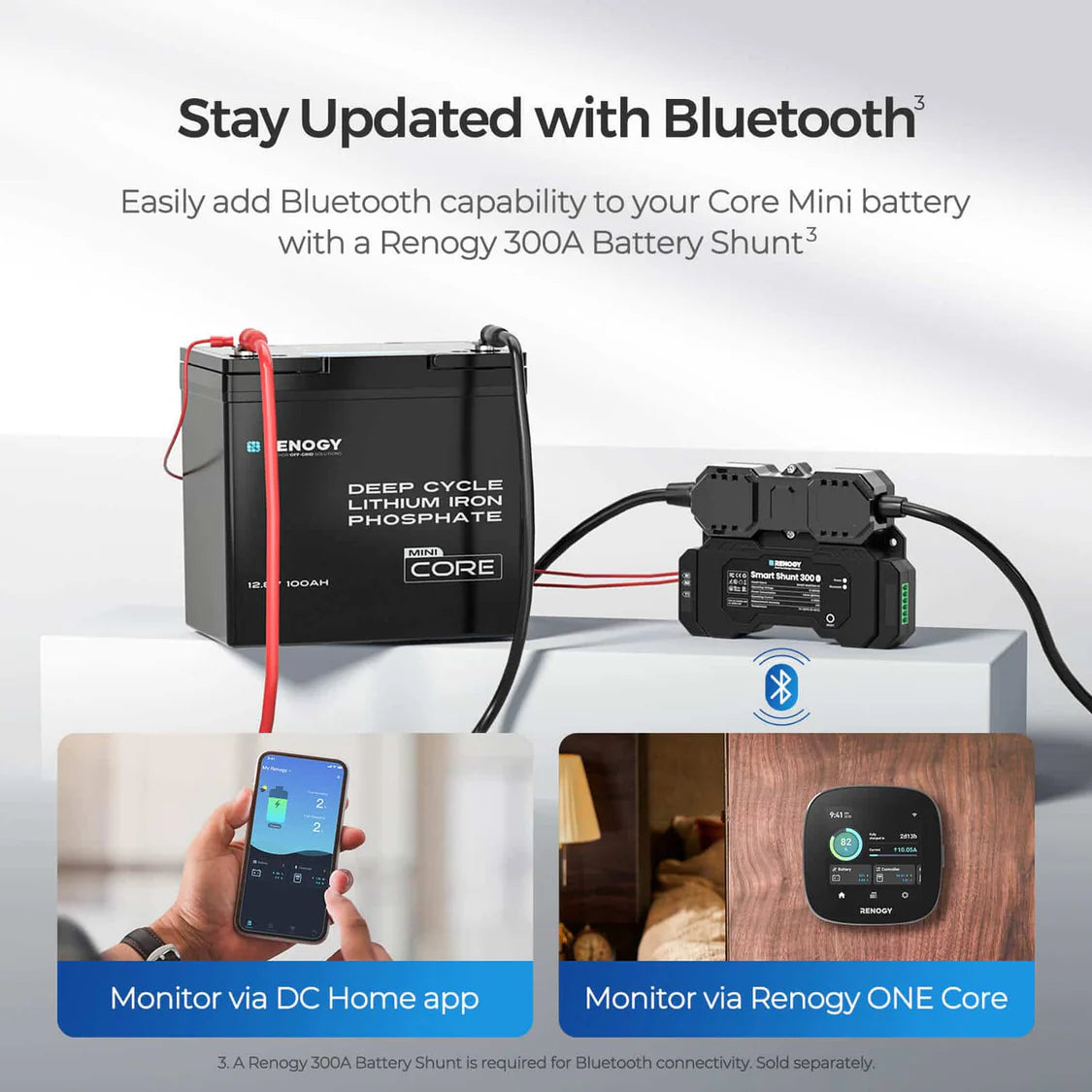

- Compatible with Renogy 300A Battery Shunt for remote monitoring

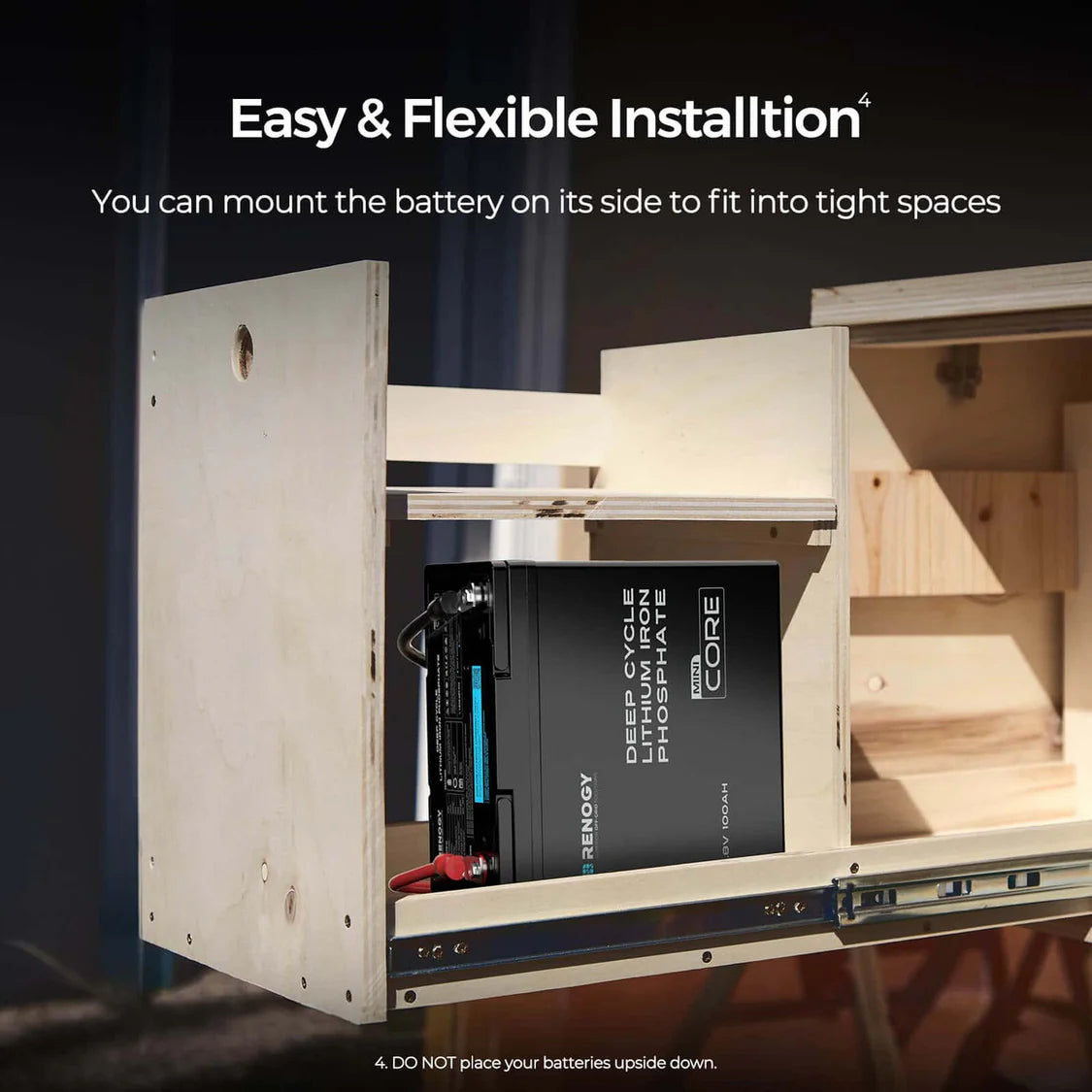

- Multi-orientation mounting for max space efficiency in tight spaces
- IP65-rated construction and vibration-resistant design for all-weather durability

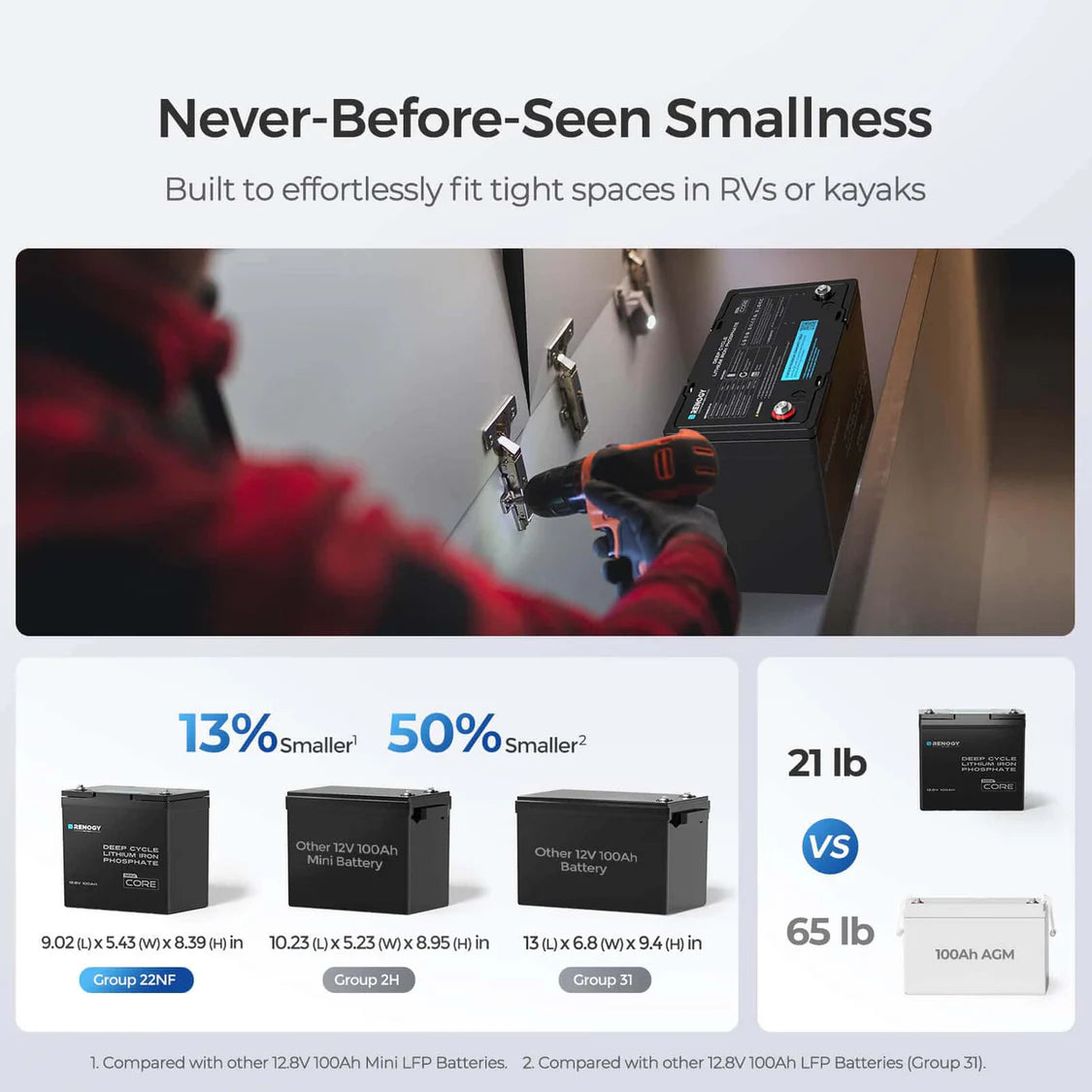

Experience Our Most Compact 100Ah Battery
Lead-Acid vs Core Mini
Same power output in a lighter, more compact design
The Compact Advantage
Next-gen design with premium safety and full power
Space Requirements
Allow 2-4" above battery, 8" clearance for busbar side
Package Includes
- Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery x 1
- Long Terminal Bolts (M8 x 1.25 x 15 mm) x 2
- User Manual x 1
| Category | Specification |
|---|---|
| Battery Type | Lithium Iron Phosphate |
| Voltage | 12V |
| Rated Capacity | 100Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.8V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Peak Discharge Current | 300A @ 5s |

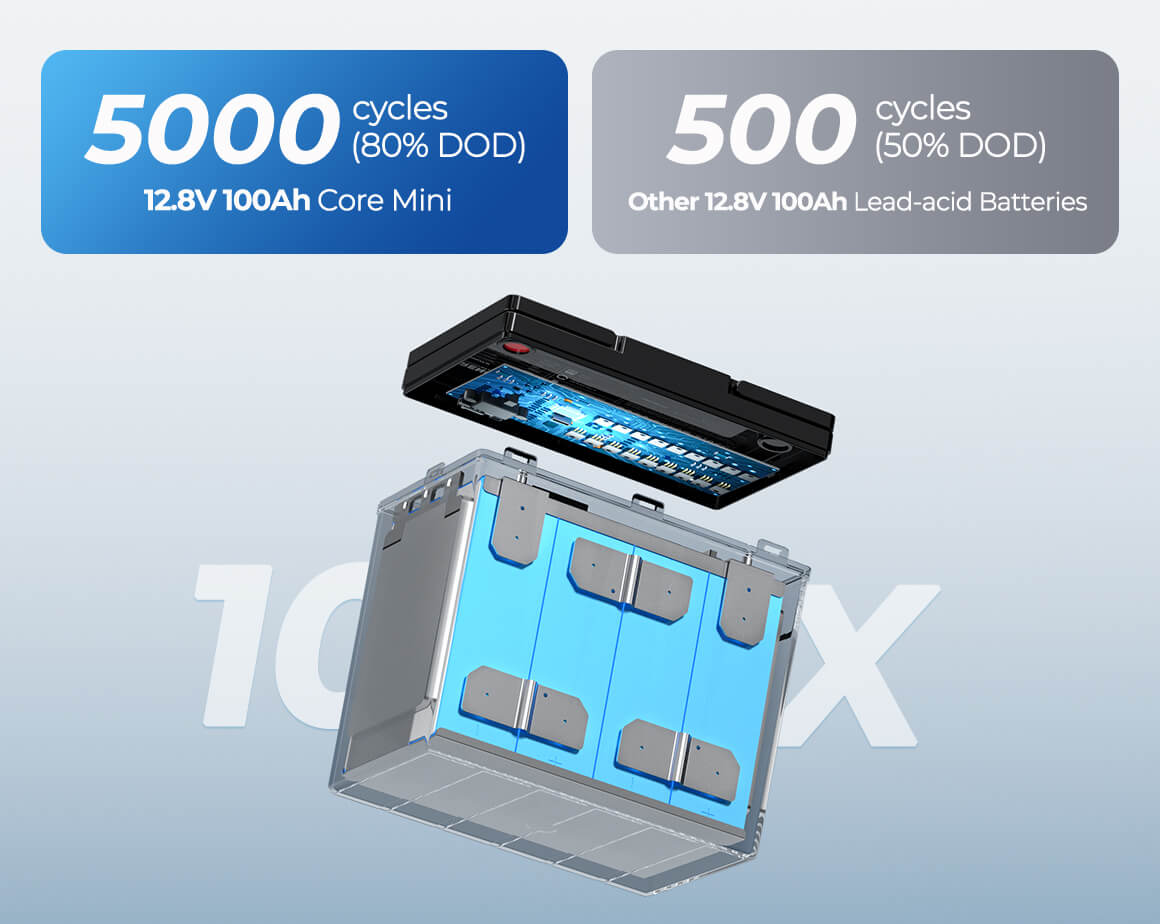

| Cycle Life (0.5C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
| Charge Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -13°F to 149°F (-25°C to 65°C) |
| Operation Relative Humidity | 10% to 95% |

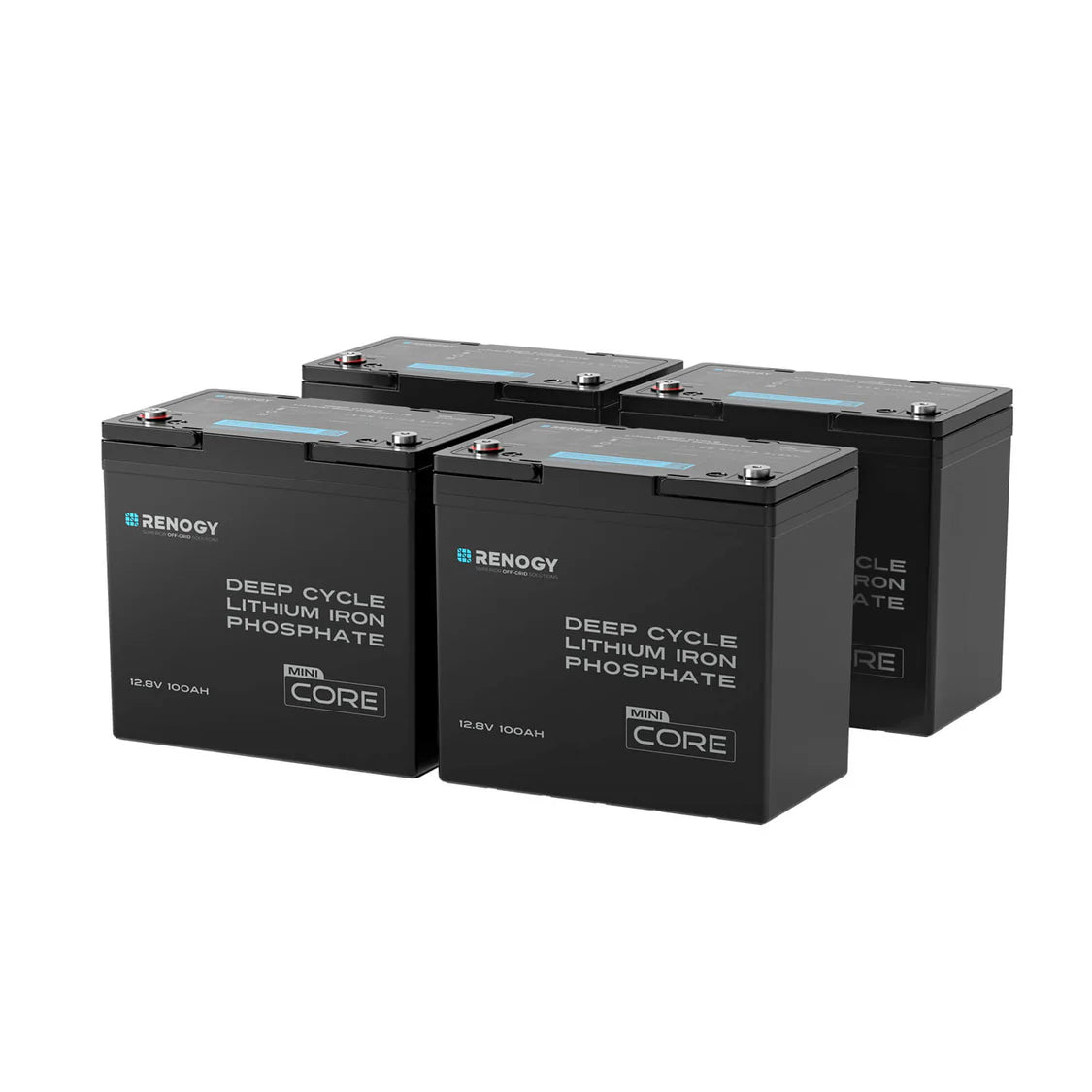

| Connection Method | Series & Parallel (4S4P) |
| Terminal Bolt Size | M8 x 1.25 x 12 mm |
| Recommended Terminal Torque | 88.5–106.2 inch·lbs / 10–12 N·m |
| Protection Rating | IP65 |
| Dimensions (L x W x H) | 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm) |
| Weight | 21.8 lbs / 9.9 kg |
Accessories
| Item | Details |
|---|---|
| Long Terminal Bolts (2) | 2 x M8 x 1.25 x 15 mm |
Warranty
| Type | Coverage |
|---|---|
| Material and Workmanship Warranty | 5 Years |
| Certification | Available |
|---|---|
| MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA | Yes |
