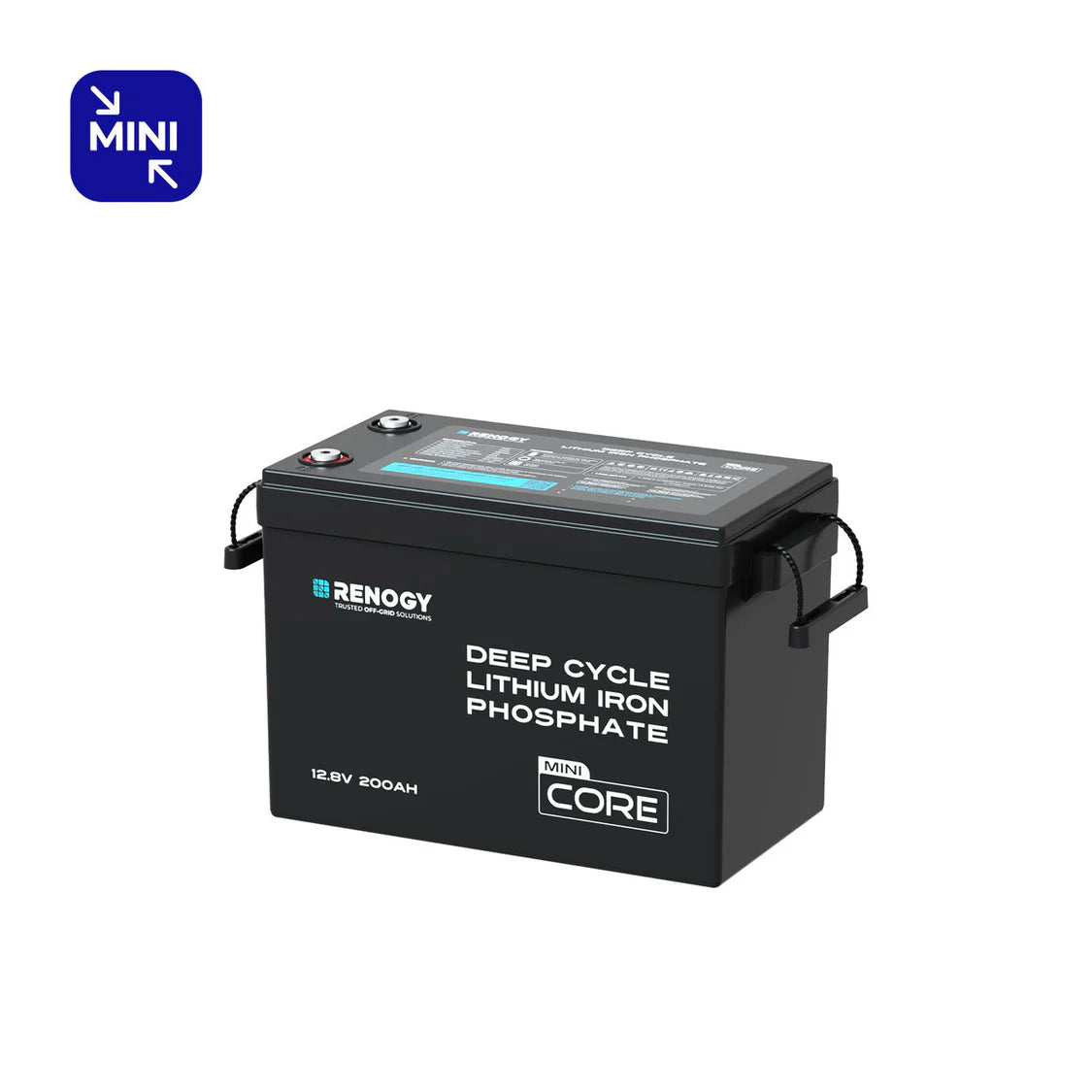

Renogy - Core - 12V 200Ah LiFePO4 Battery w/ Low-Temperature Protection (RBT12200LFP-B-US)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW

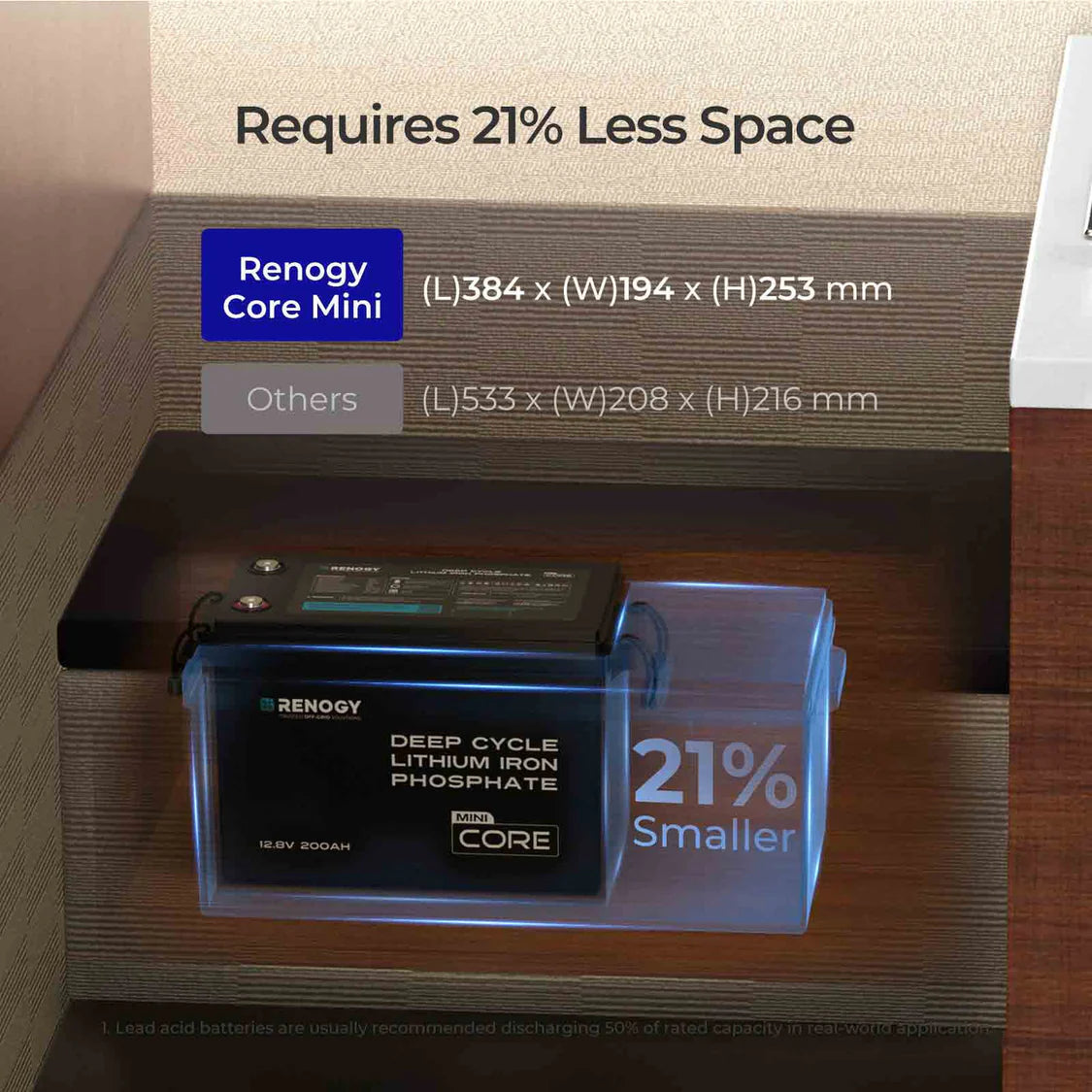

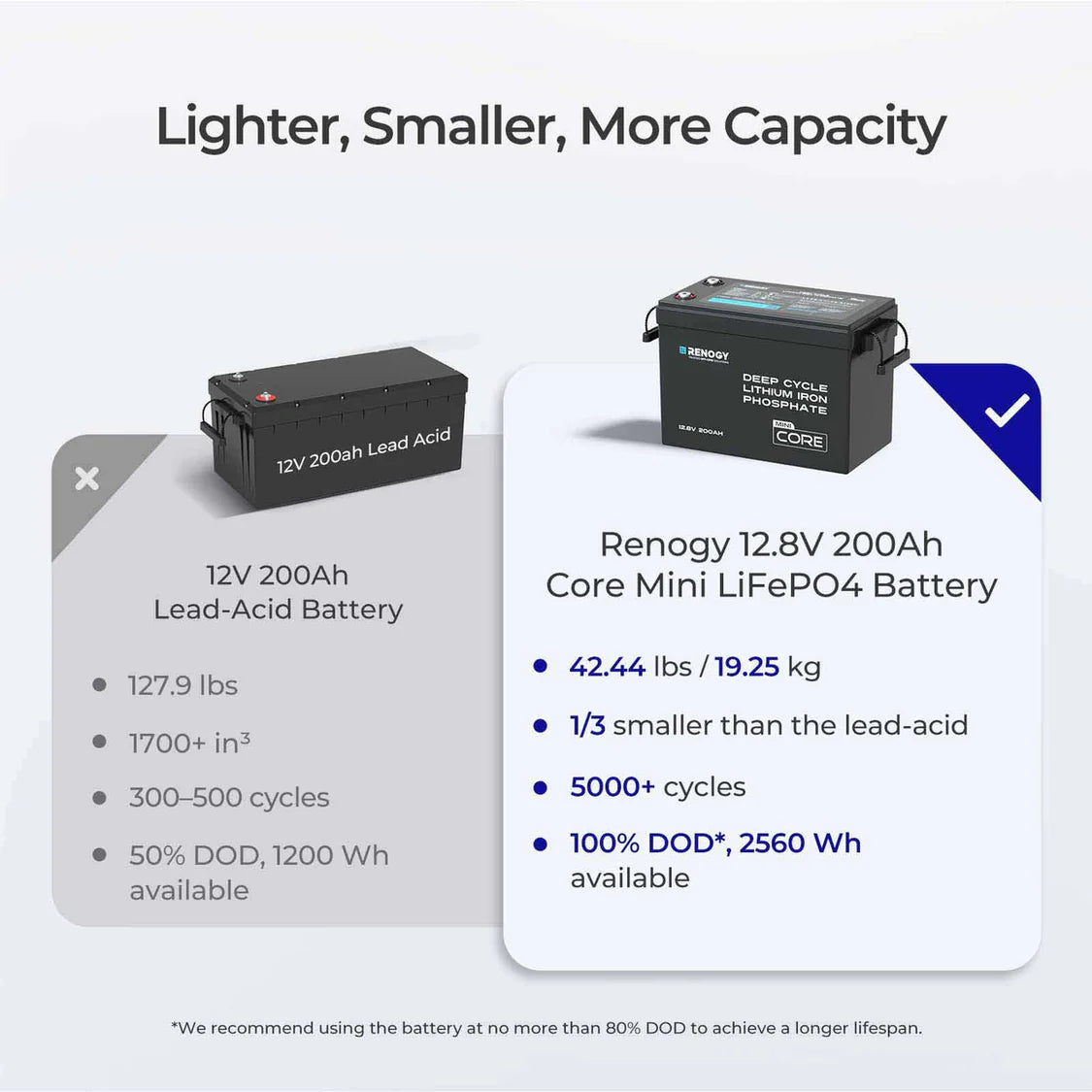

- Smaller than ever! 1/3 smaller than 12V 200Ah lead-acid.

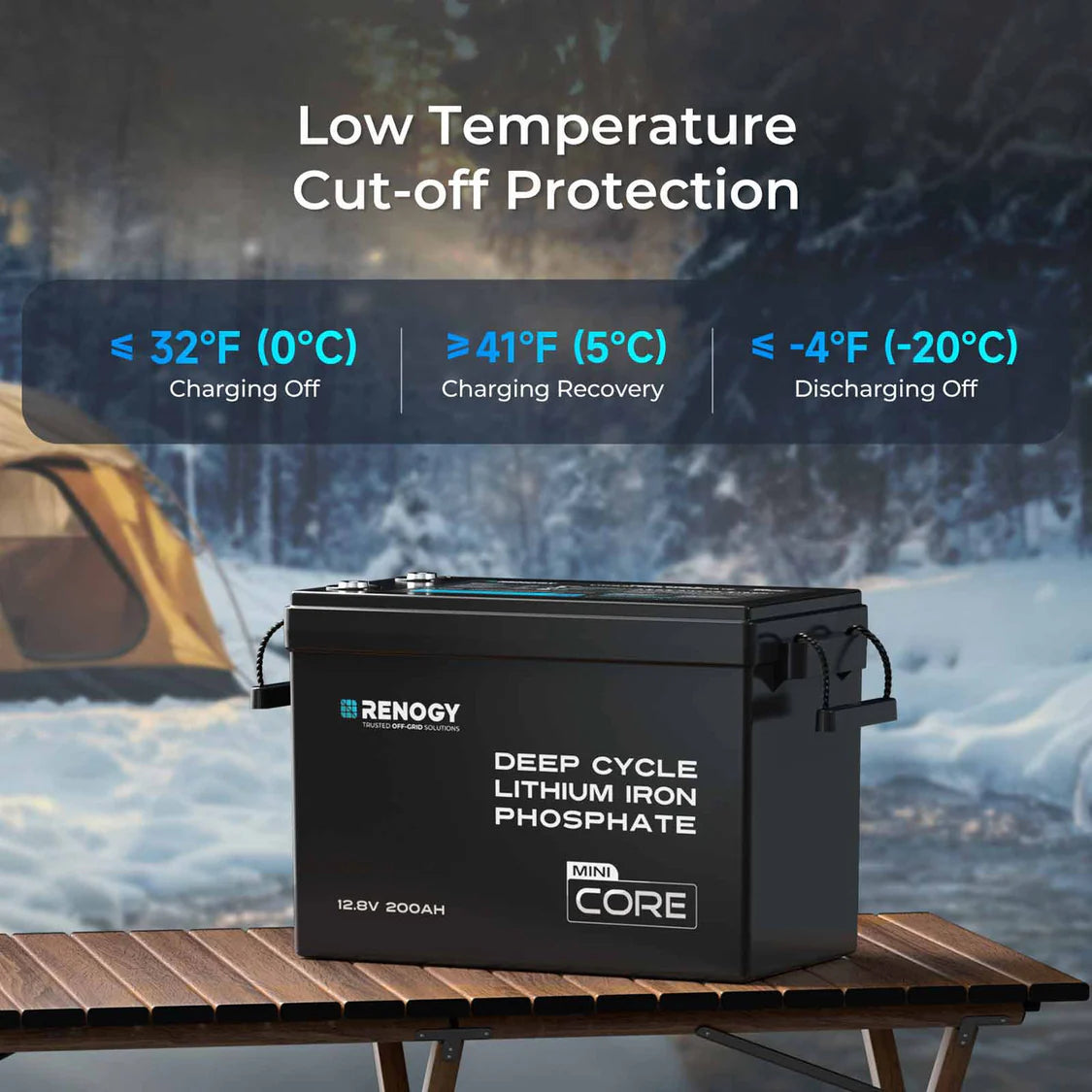

- A 200A BMS, more robust than a 100A. Low-temp cut-off (charge & discharge).
- IP65 waterproof & vibration-resistant for enhanced outdoor performance.
- Certified by FCC, UN38.3, ROHS, UKCA and more. 5-year warranty.

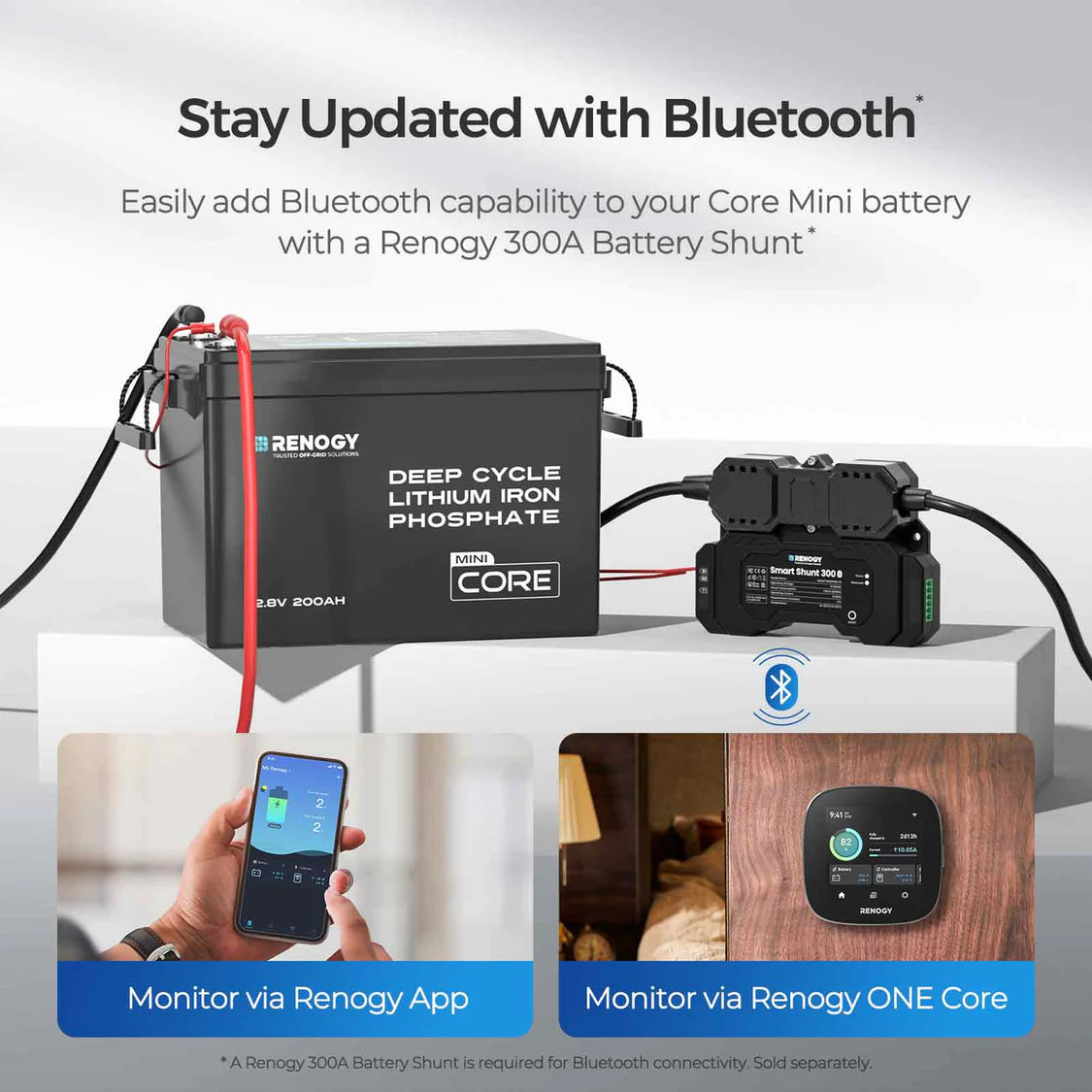

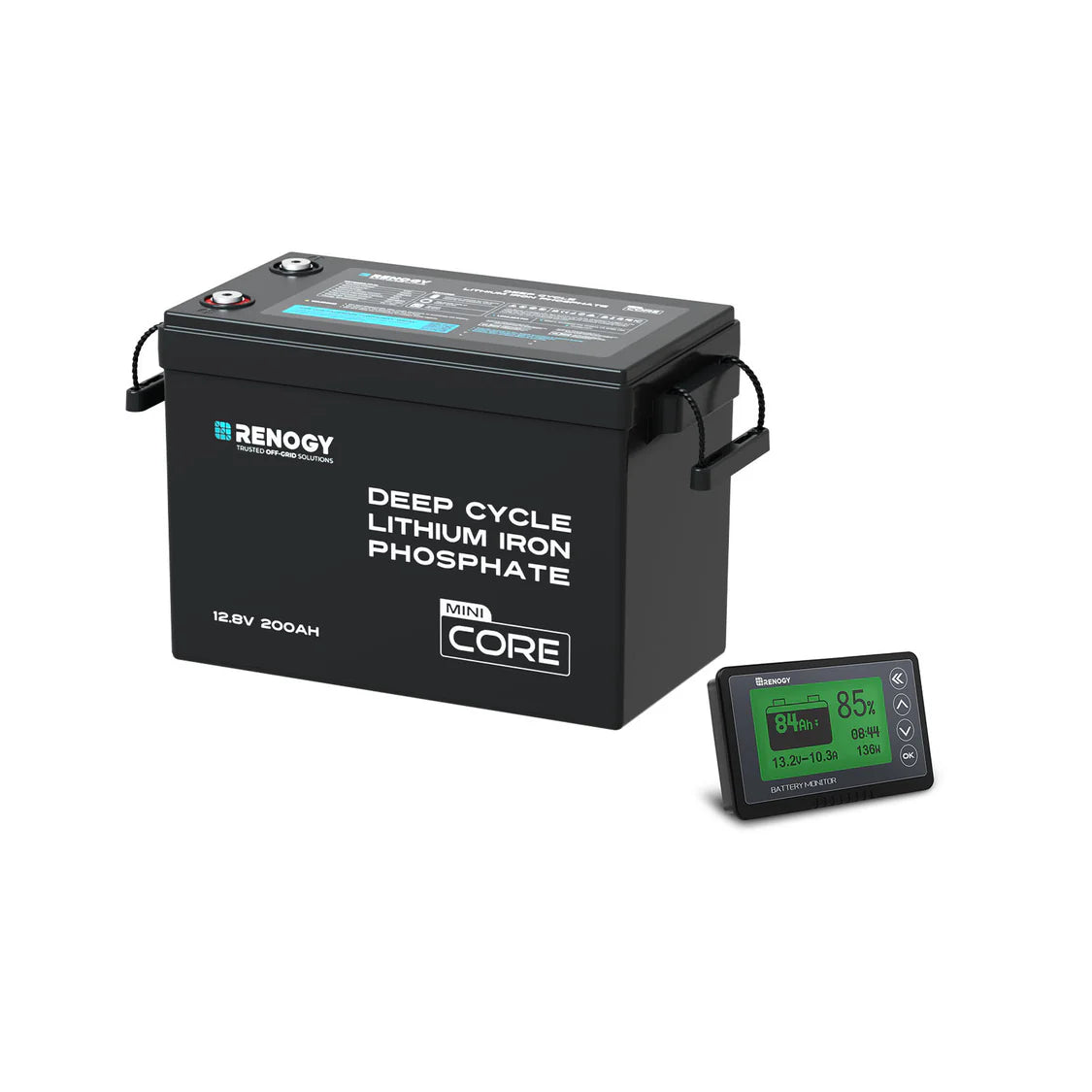

- Works with a Renogy 300A Battery Shunt for Remote Monitoring.
Check for Compatibility

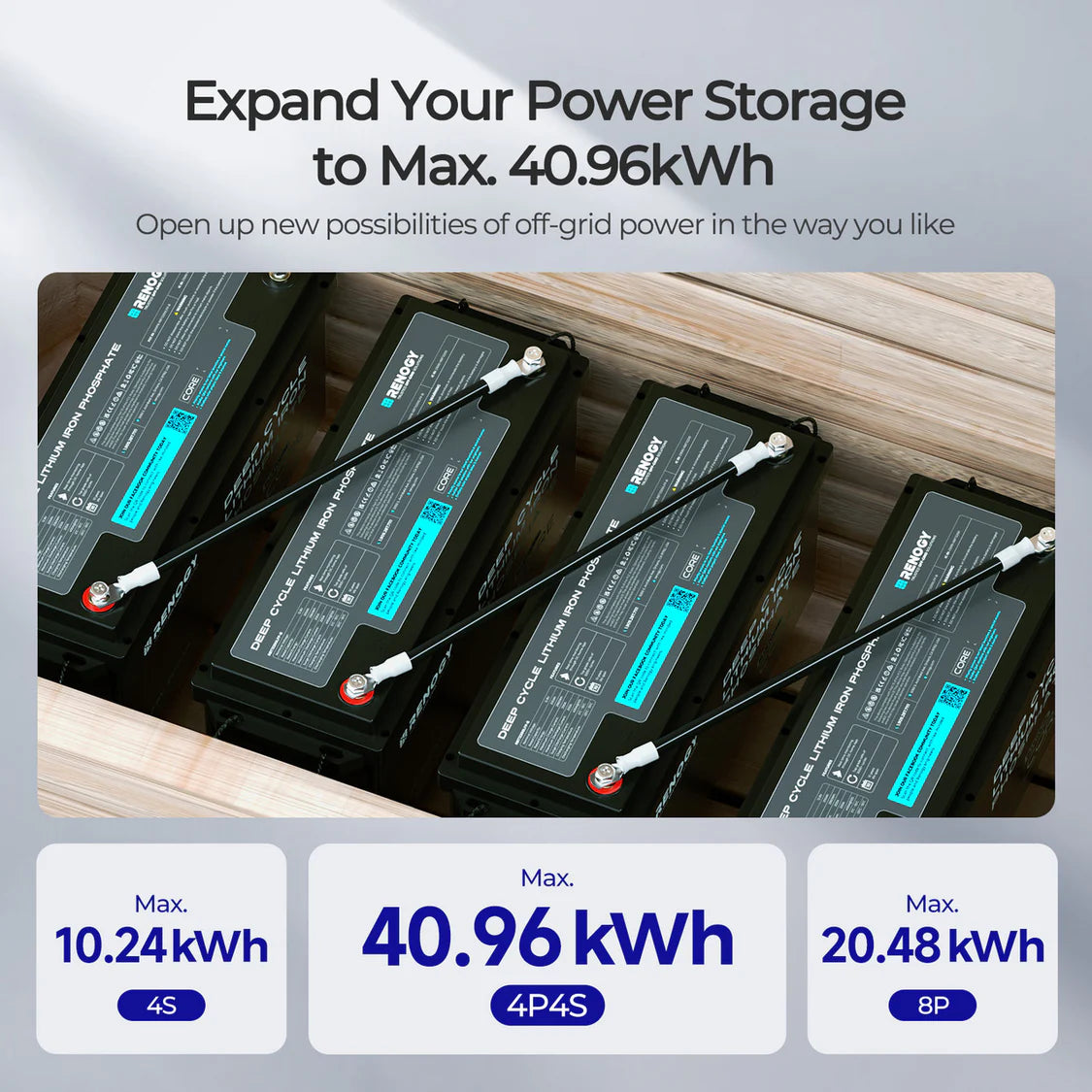

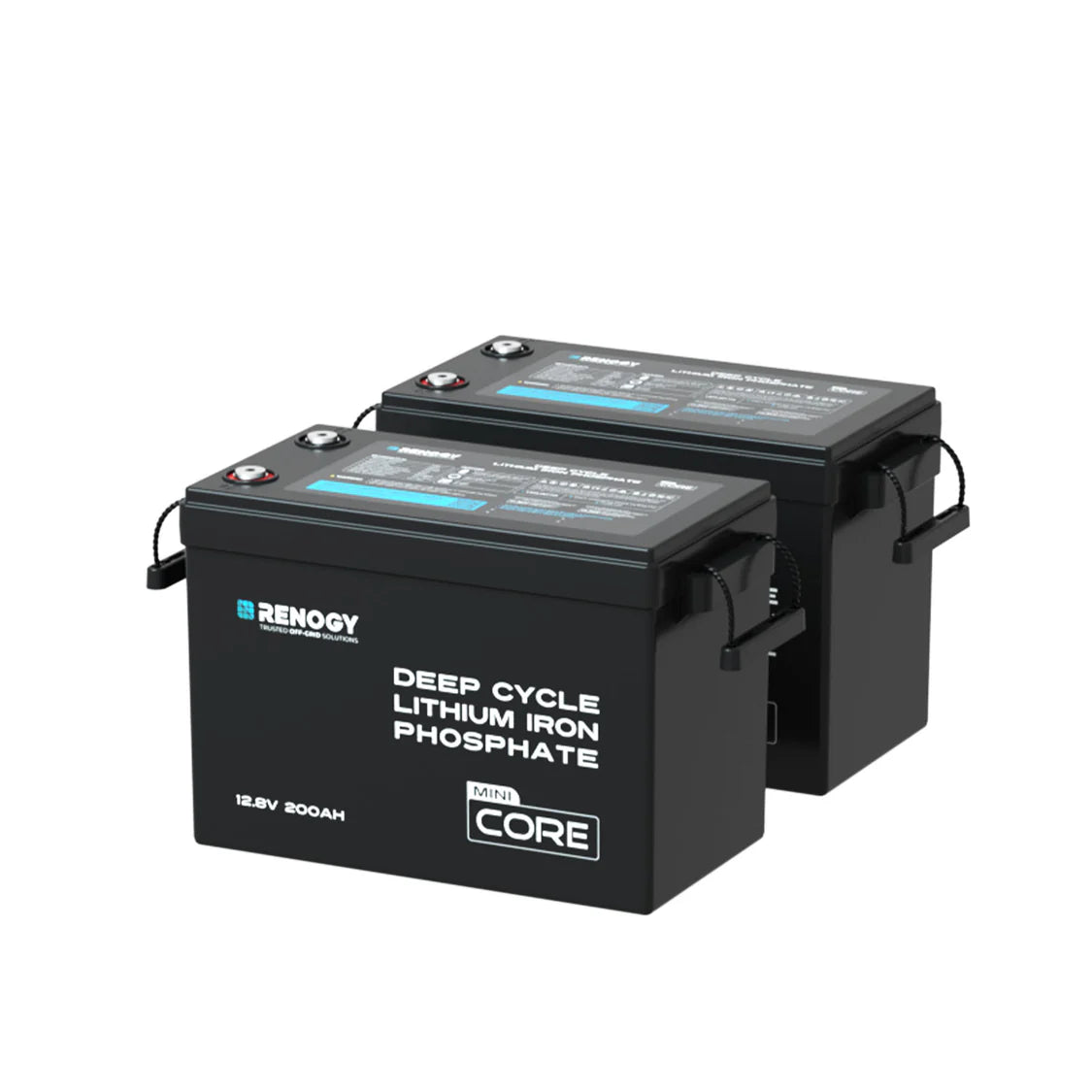

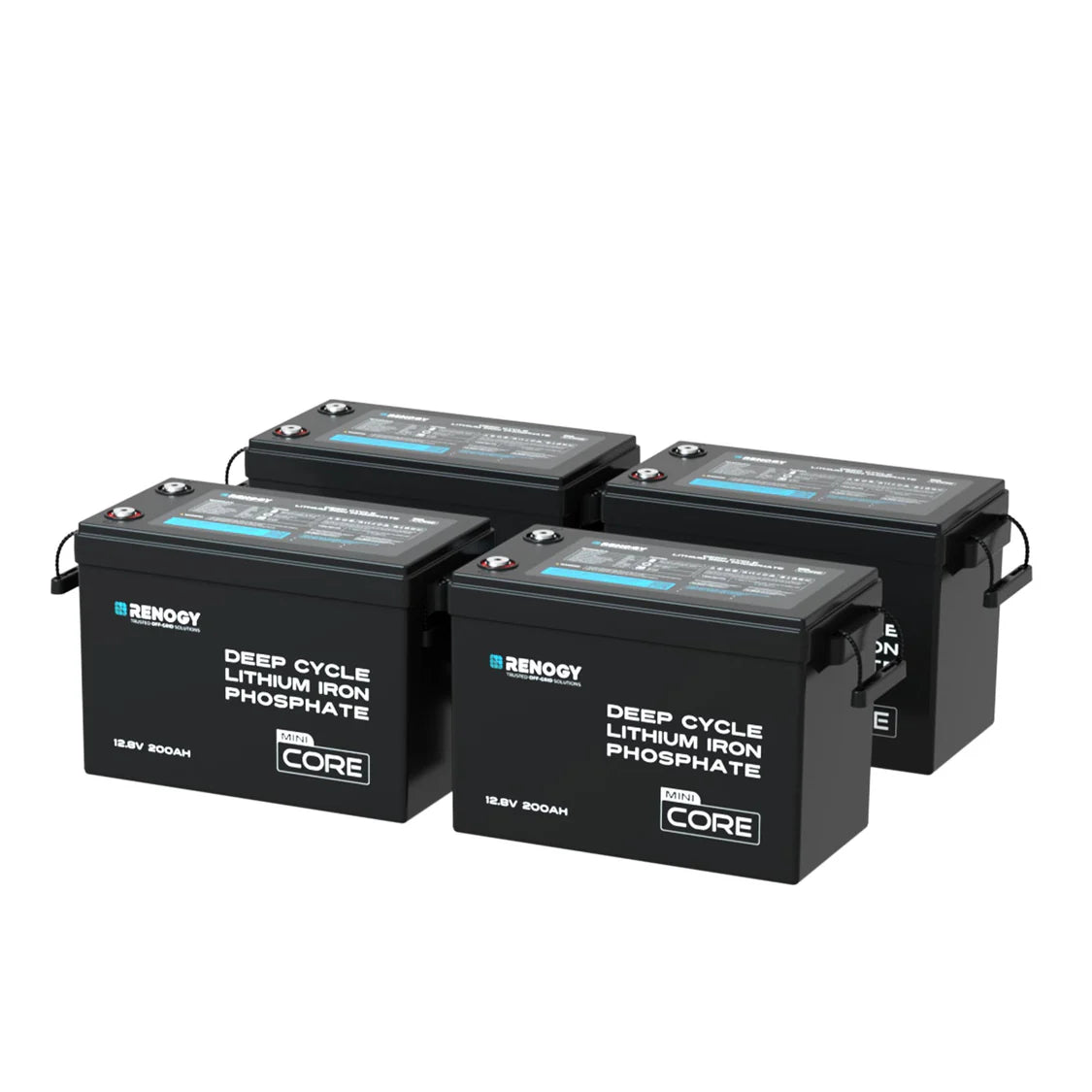

If you are considering expansion. Note that Generation 2 is compatible with Generation 1. If you're unsure about the version you have, our customer support team is ready to assist you.
Take a Closer Look
Our popular 12V 200Ah Core LFP Battery, now upgraded with Bluetooth for smart mobile monitoring.

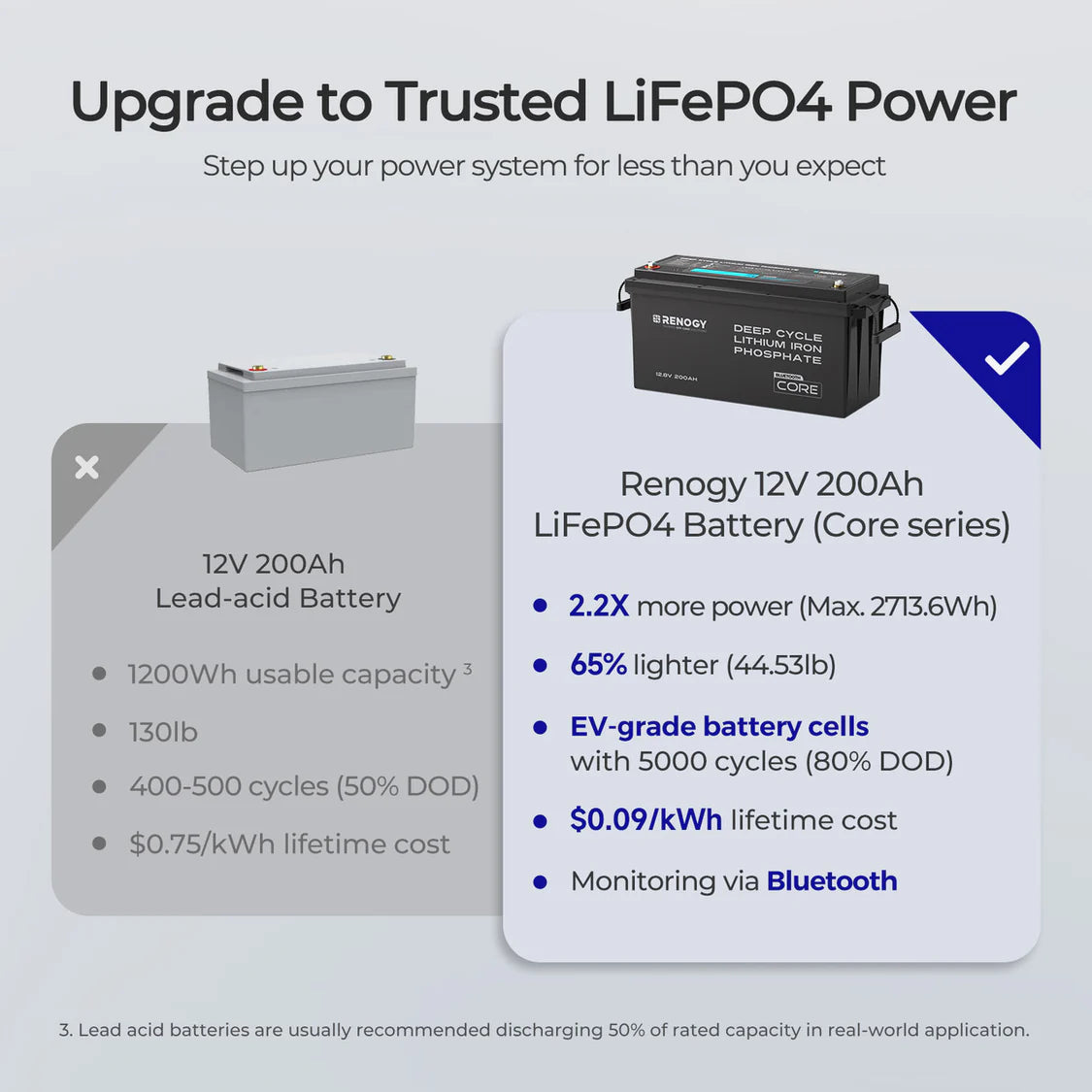

200Ah Core vs. Other LiFePO4
Unmatched performance for your most demanding energy needs.
Real-Time Power at Fingertips
The all-new Renogy 12V 200Ah Core Battery with Bluetooth connectivity enables effortless monitoring via the Renogy app. Instantly track remaining power, voltage, current, and receive critical alerts for protection triggers—all from your smartphone. Stay informed and ensure optimal performance with seamless, real-time updates.
Dimensional Reference Guide
Before installing the battery, ensure you leave 1.97-3.94 inches (5-10 cm) of space above the battery and at least 7.87 inches (20 cm) on the side with the busbars.
What's in the box
Package Includes
- Core - 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth x 1
- Long Terminal Bolts x 2
- Insulation Sleeves x 2
- User Manual x 1
Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery w/ Bluetooth
| Specification | Details |
|---|---|
| Rated Capacity | 200Ah (0.5C, 25℃) |
| Voltage | 12V |
| Energy | 2560Wh |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
| Voltage Range | 10V to 14.8V |
| Parameter | Details |
|---|---|
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Parameter | Details |
|---|---|
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 400A @ 10s |
| Parameter | Details |
|---|---|
| Operation Temperature Range | Charge: 32°F to 122°F (0°C to 50°C) Discharge: -4°F to 131°F (-20°C to 55°C) |
| Storage Temperature Range | -4°F to 149°F (-20°C to 65°C) |
| Operation Relative Humidity | 10% to 95% |
| Parameter | Details |
|---|---|
| Dimensions (L × W × H) | 19.76 × 7.36 × 9.53 in (502 × 187 × 242 mm) |
| Weight | 44.53 lbs (20.2 kg) |
| Terminal Bolt Size | M8 × 1.25 × 15 mm |
| Protection Rating | IP65 |
| Type | Coverage |
|---|---|
| Material and Workmanship Warranty | 5 Years |
| Certification | Available |
|---|---|
| MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, UKCA | Yes |
