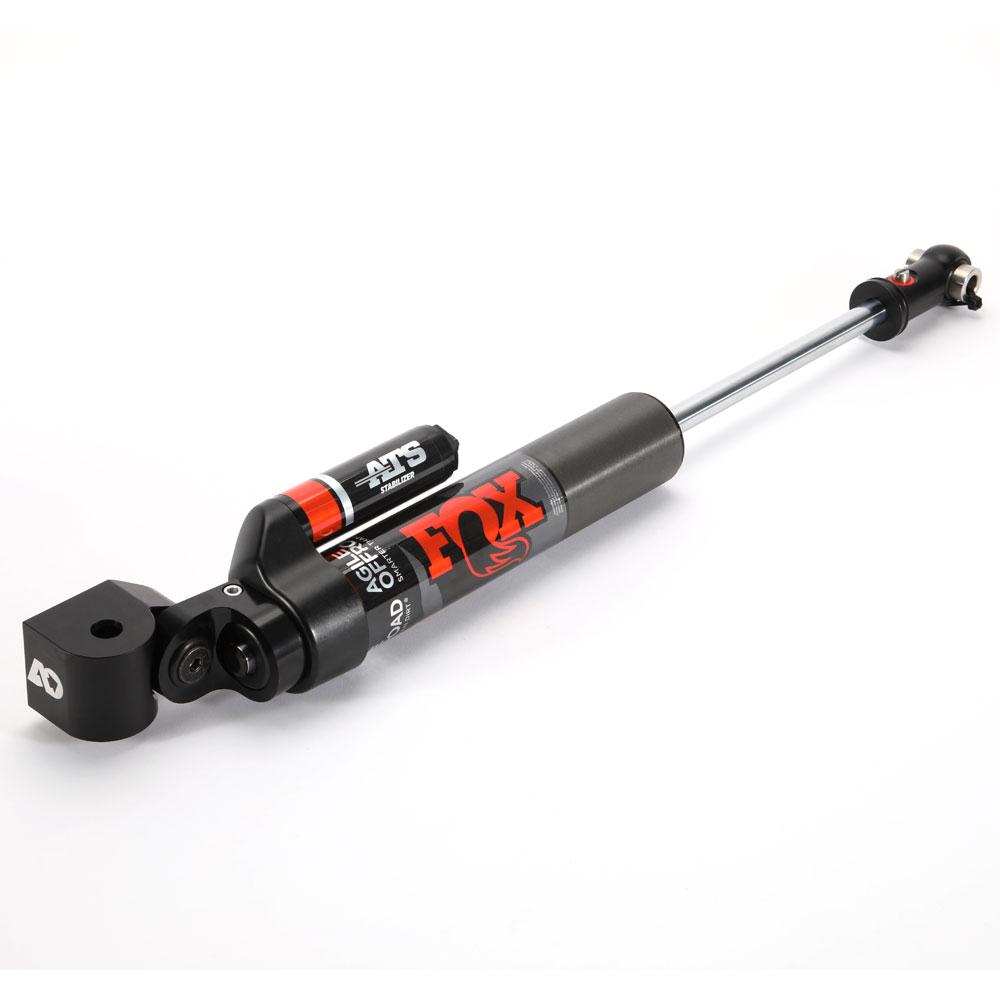

Agile Offroad - FOX ATS Direct Fit Steering Stabilizer for INEOS Grenadier (AO-M1G)

At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.

OVERVIEW

• FOX Adjustable Through Shaft (ATS) design
• Offers unrivaled steering control
• Integrated reservoir for additional fluid capacity & improved cooling
• Direct fit for INEOS Grenadier
• FOX 983-02-148 ATS Steering Stabilizer w/ custom mounting kit

PRECISION-FIT MOUNTING HARDWARE FOR FOX ATS STEERING STABILIZER

Designed specifically for the INEOS Grenadier, the Agile Offroad FOX ATS Adjustable Steering Stabilizer Mounting Hardware provides a perfect fit for the 983-02-148 FOX ATS stabilizer, ensuring secure, high-performance integration with your vehicle’s steering system.

Unlike universal mounts, this purpose-built solution eliminates compatibility concerns, offering a solid, movement-free attachment for the FOX ATS stabilizer. By keeping the stabilizer firmly in place, this mount helps reduce steering feedback, stabilize front-end movement, and improve overall vehicle control, especially in off-road and high-speed driving conditions.

FOX/AO PERFORMANCE SERIES ATS GRENADIER STEERING DAMPER

The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer for the INEOS Grenadier was designed as a direct fit Grenadier performance upgrade by Agile Offroad. This steering stabilizer offers unrivaled steering control and a striking high tech appearance. The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel.

The ATS represents a revolutionary breakthrough in stabilizer design. Since the ATS runs a shaft all the way through, it makes the surface area on both sides of the stabilizer’s piston equal. This unique two-in-one through-shaft design creates a pressure balance so no unwanted push is felt in either direction.

The integrated reservoir allows for additional fluid capacity and improves cooling during extreme use.

SPECIFICATIONS

• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8″ hard chrome plated heat treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bushings: Quiet nitrile rubber allows for increased suspension articulation
• Mounting: Direct replacement for stock and aftermarket lifts kits
• Adjustments: Adjuster – 24 clicks of adjustability
• Options: 1-5/8″ tie-rod mounting clamp
• Extended: 22.190″
• Compressed: 14.070″
• Travel: 8.120″
• Top Mount: Eyelet
• Bottom Mount: Tie Rod Clamp
