OVERVIEW

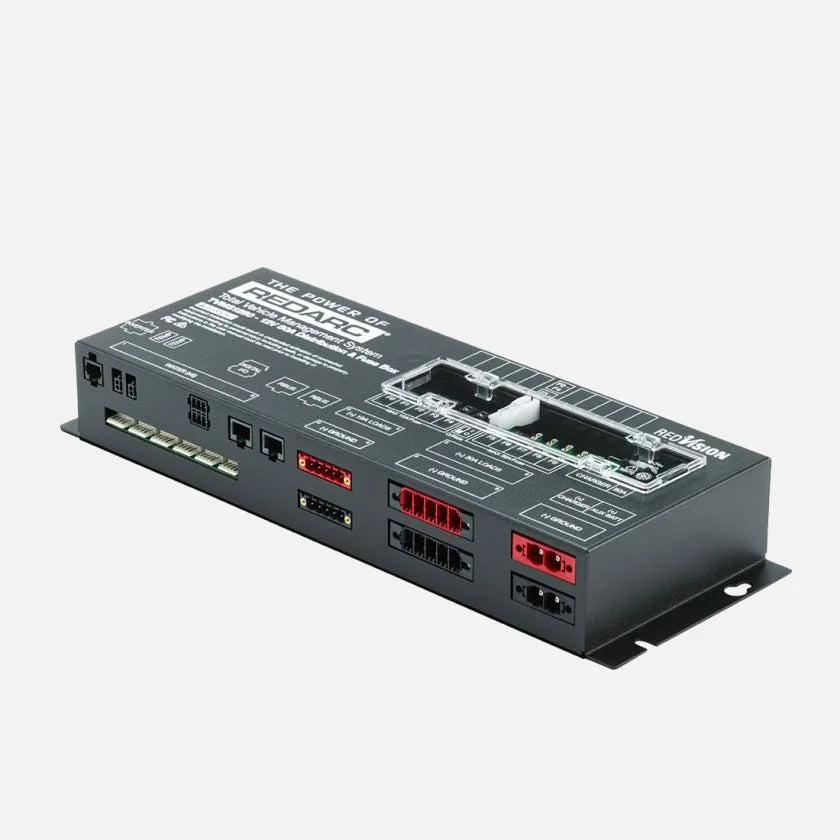

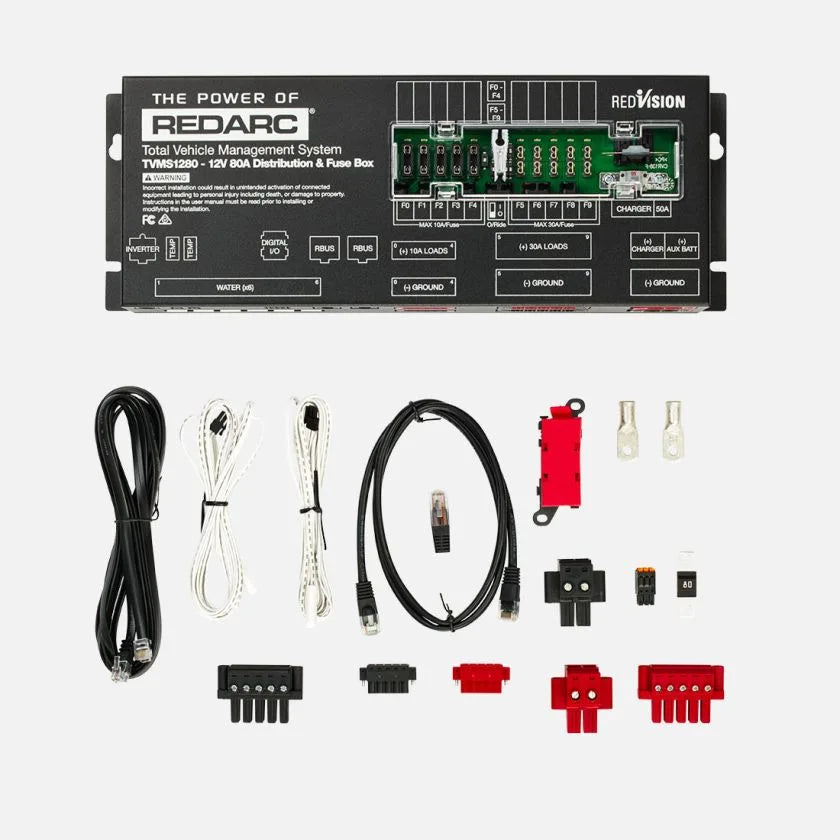

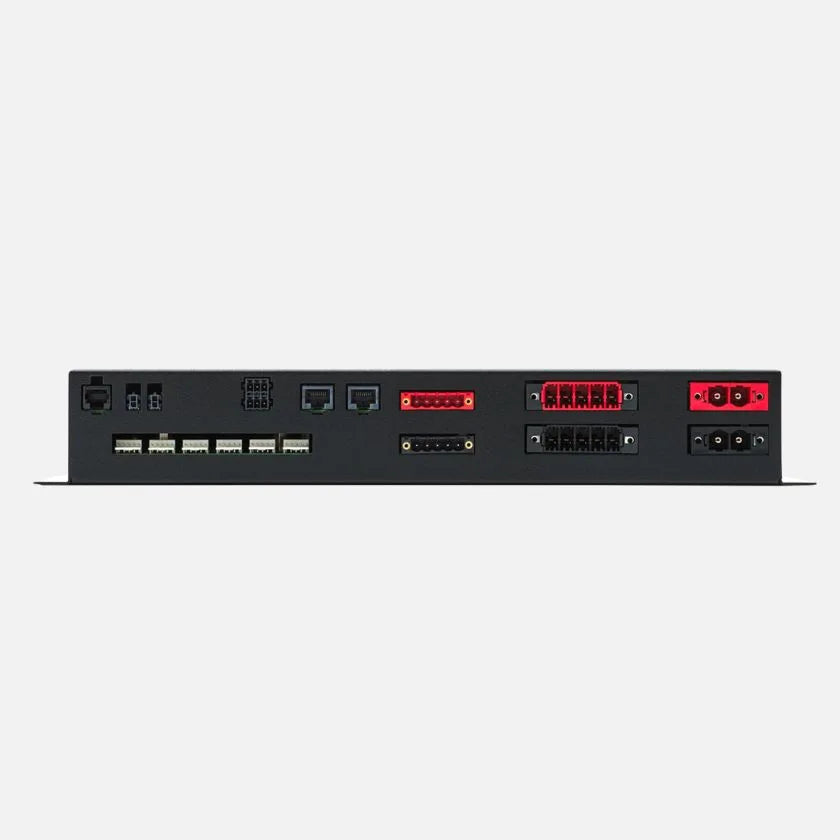

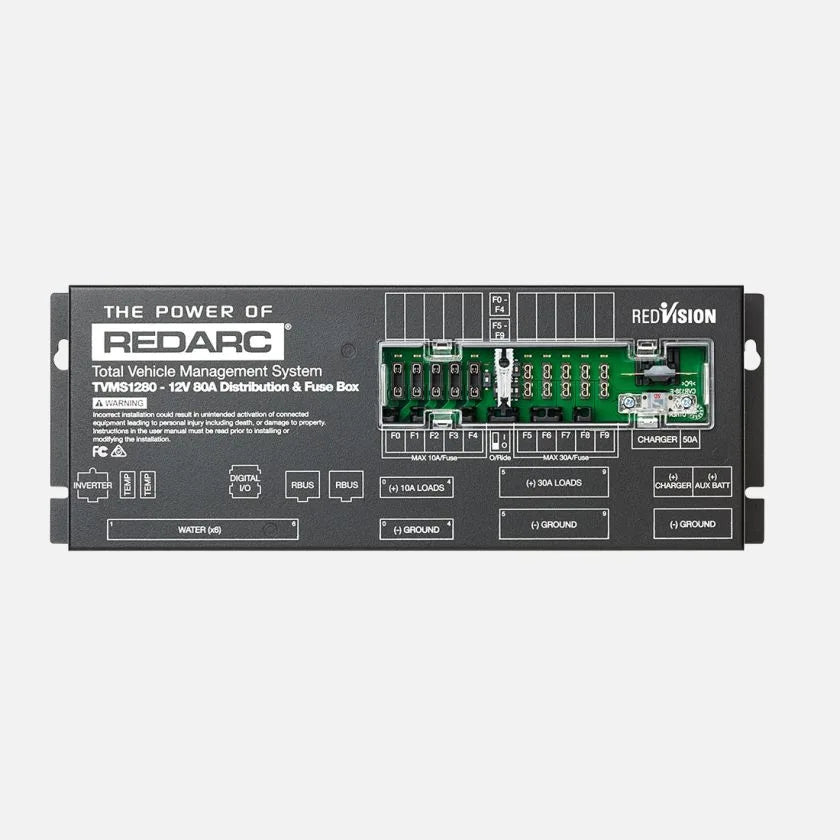

The TVMS Prime Distribution (TVMS1280-DBV2) box can be used to upgrade an existing Manager30 system to incorporate full RedVision functionality, allowing the control and monitoring of multiple on-board devices in a RV, 4x4 and camper trailer in one place.
This is an upgrade unit only, which requires an existing Manager30 with Color Display Screen in order to provide all functionality.
- Seamless control over your entire power system
- Switch accessories on/off like lights, compressor, TV etc
- Monitor temperature, water tank levels etc
- Live data and battery vitals on color display or smartphone app
- Distribution box so less wiring, less wire weights
- Easy install with less wiring.
RedVision by REDARC is a Total Vehicle Management System which allows the control and monitoring of multiple on-board devices in a 4RV, 4x4 and camper trailer in one place.
RedVision allows you to control multiple on-board devices, such as turning lights, inverter, water pumps and other loads such as televisions, electric steps and fridges on or off. It also provides you with the ability to monitor water levels, temperatures, energy (battery power) consumption and storage, with the battery information available when used with a Redarc Manager30 battery management system.
A RedVision system, the combination of the distribution and color display screen, also provides connectivity via a mobile friendly app that features the control and monitoring of many functions in a over landing vehicle, camper trailer or motorhome in one place.
The display and app uses a modern, user-friendly interface, by incorporating an easy to understand system layout. The robust display has been built and tested to withstand the toughest conditions.
This is an upgrade unit only, which requires an existing Manager30 with Color Display Screen in order to provide all functionality.
*TVMS Rogue is compatible with RedVision Display units (DISP4300-RC) manufactured from January 2023, serial numbers beginning with 23. Displays manufactured from July 22 to Jan 23 (serial numbers beginning 2207 - 2212) are upgradable.
MORE INFORMATION
| WARRANTY | 2 Years |
|---|---|
| GTIN_BARCODE | 9338628006298 |
| BRAND | REDARC |
| WEIGHT | 4 lb 7 oz (2.0 kg) |
| DEPTH | LENGTH | 15.2" (385 mm) |
| WIDTH | 5.4" (138 mm) |
| HEIGHT | 2.3" (58 mm) |
| SUITABLE FOR 24V SYSTEMS | No |
| SUITABLE FOR 12V SYSTEMS | Yes |
| MAX. CHARGER CURRENT | 40A |
| MAX. BATTERY CURRENT | 80A |
| MPPT SOLAR REGULATOR | No |
| NO. SWITCHED CIRCUITS | 5 x 10A Max, 5 x 30A Max |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | No |
| SYSTEM VOLTAGE | 12V |
| BLUETOOTH COMPATIBLE | Yes |
| CABIN/ CANOPY INSTALL | Yes |
| OPERATING TEMPERATURE | -4°F to 140°F |
