Triple-R Lights - Toyota Tundra TRD (2022+) Grille Kit - Carbon-2 (USTUN-03)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW
Transform your Toyota Tundra TRD (2022+) with our precision-fit Grille Integration Kit. Designed for seamless integration, the kit pairs your truck with Carbon-2 High Performance LED driving lights—built tough, styled sharp, with unrivalled performance.

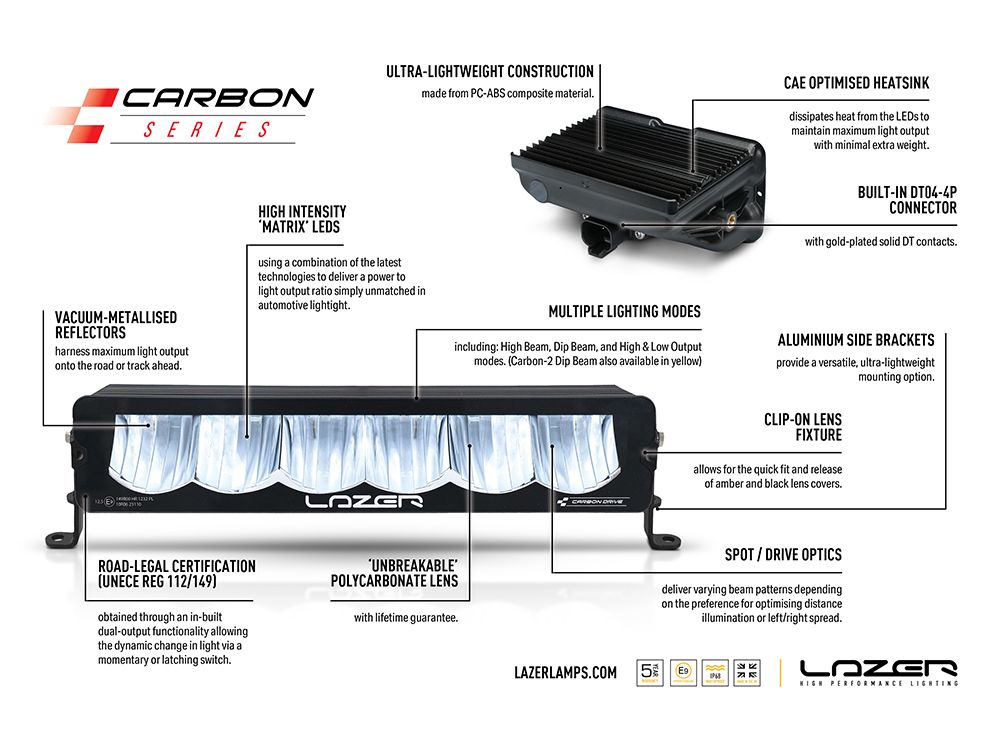

Born from motorsport innovation and refined for real-world adventure, the Carbon-2 series blends cutting-edge optics with lightweight composite strength—proven performance that’s ready for the trail. With a choice of Spot or Drive optics and with either white or yellow dipped beam, the Carbon-2 series adapts to every driving scenario. The Carbon-2 Spot LED lights uses dual-output technology, where the low-output mode (Flash-to-dim) ensures DOT/SAE compliant road use, while the high-output mode maximizes long-range visibility off-road. The Carbon-2 Drive LED lights are also DOT/SAE compliant, with yellow dipped beam variants doubling as a DOT/SAE compliant fog light, for ultimate practicality.

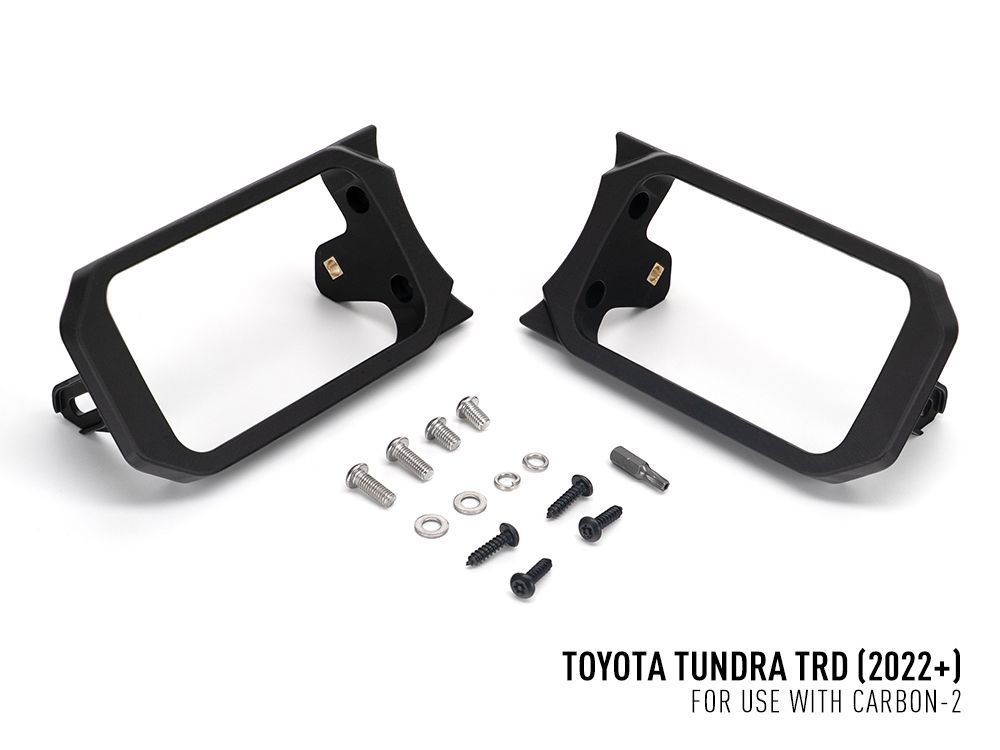

The lights are mounted using two precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes a two-lamp wiring loom and anti-theft fasteners for an easy, secure, and long-lasting installation.
Please note: The Toyota Tundra TRD (2022+) Grille Integration Kit is carefully engineered and optimised for use with Carbon-2 High Performance LED driving lights. Our warranty does not cover grille mounts fitted with non-Triple-R Lights branded products.

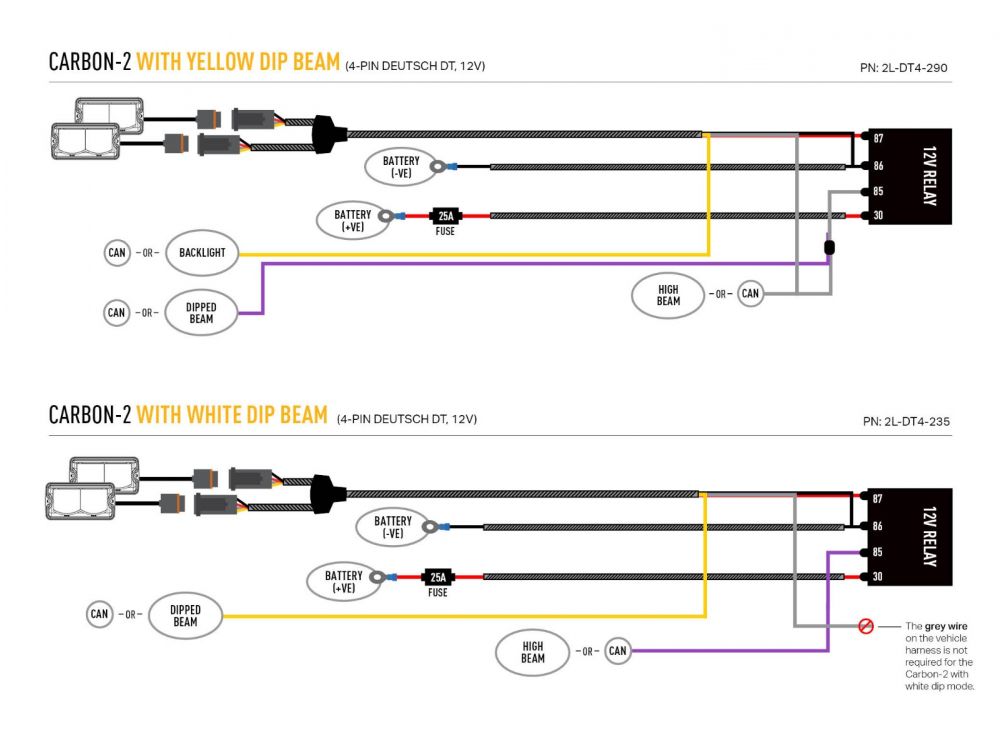

When wiring direct to the high beams and the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Product Features
- Bespoke vehicle brackets for seamless integration
- Custom fit for Toyota Tundra TRD (2022+)
- Compatible with Carbon-2 LED Lights
- Kit also includes bespoke mounting brackets and wiring kit
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
Technical Specifications
|
2x Carbon-2 DRIVE |
2x Carbon-2 SPOT |
||
|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | |
| LED Life | 50,000 hours | 50,000 hours | |
| Weight | 0.42 lbs (per lamp) | 0.42 lbs (per lamp) | |
|
|
|||
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 6,240 Lm | 6,240 Lm | |
| Total Driver 'FOV' Flux † | 3,672 Lm | 3,672 Lm | |
| High Beam Colour Temperature | 5000K | 5000K | |
| Power Consumption | 58 Watts | 58 Watts | |
| Peak Current Draw | 5.2 Amps | 5.2 Amps | |
| Current Draw (14.4V) | 4.2 Amps | 4.2 Amps | |
| Connector | 4-Pin Deutsch DT (+15cm Cable) | 4-Pin Deutsch DT (+15cm Cable) | |
|
|
|||
| CERTIFICATION | |||
| IP Rating # | IP68 | IP68 | |
| High Beam | DOT/SAE - Driving Light | DOT/SAE - Driving Light (in Low Output Mode only) | |
| Dip/Low Beam | DOT/SAE - Fog Light (Yellow Dip Lights only) | N/A | |
| Salt Spray Test | ISO 9227 | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | |
|
|
|||
| PHOTOMETRIC DATA | |||
| Horizontal / Vertical Beam Angle | 60° / 12° | 32° / 12° | |
| 0.25 lx Line | 748m | 1349m | |
| 0.5 lx Line | 529m | 954m | |
| 1 lx Line | 374m | 675m | |
| 3 lx Line | 216m | 389m | |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
What's Included
- x1 Grille Mount Kit
- x2 LED Lighs (Carbon-2 Spot/Drive)

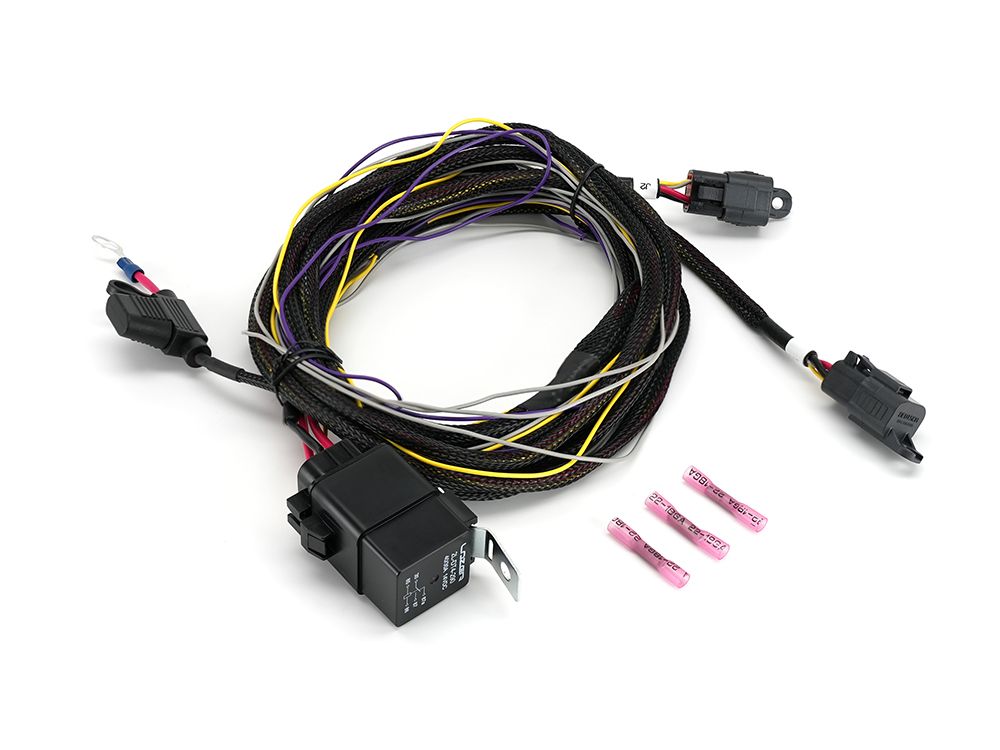

- x1 Two-Lamp Wiring Kit
- Fitting Instructions
