Triple-R Lights - Land Rover Defender (2020+) - A Pillar Mounting Kit (VIFK-DEF2020-UT25-US)



/
Shipping calculated at checkout.
  • Shipping or Pick Up in Store Available
  • Available Monday - Friday 9AM - 6PM PST
  • Need Installation? Contact Us


DESCRIPTION

At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.


------------

OVERVIEW

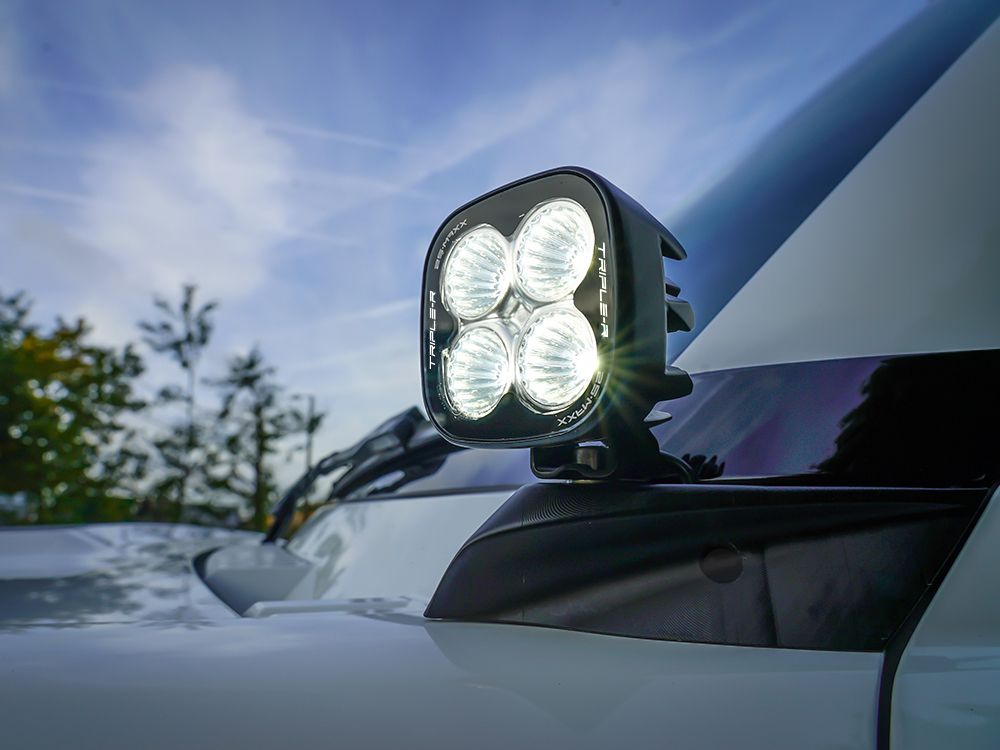

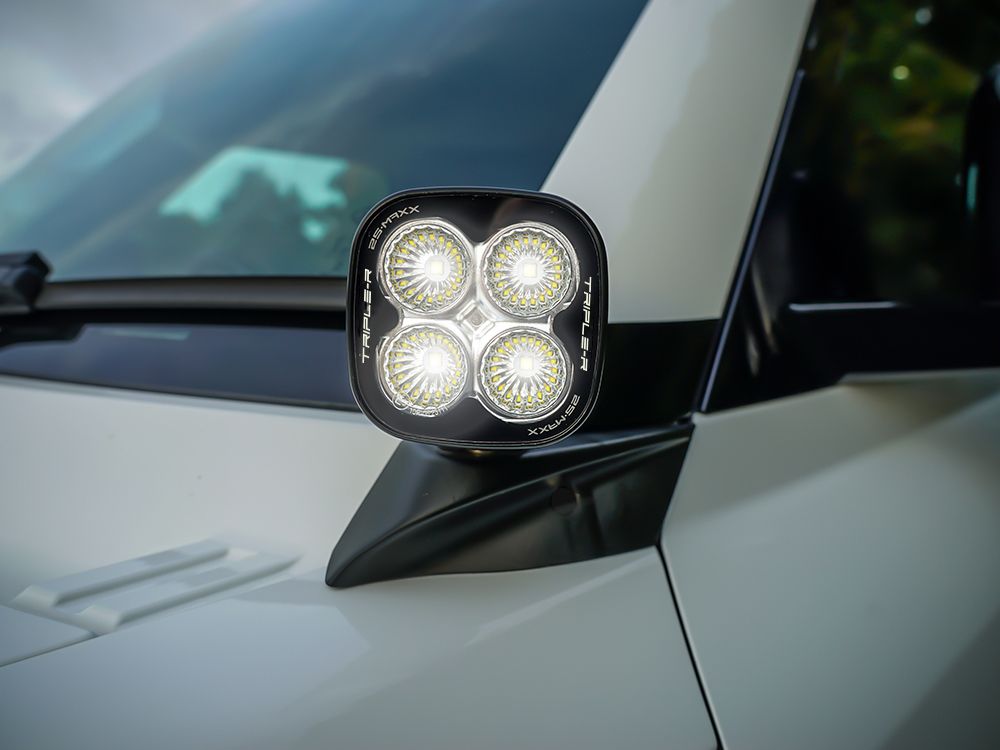

A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.


Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the lamp cables and wiring.





PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATELY.




NOT FOR HIGHWAY USE


Product Features


  • A-pillar mounting brackets comprising left-hand and right-hand parts
  • Custom fit for Land Rover Defender (MY 2020+)
  • Compatible with: Utility-25 / Utility-25 MAXX LED work lights
  • Produced from high strength, UV-stable, composite material
  • Easy installation with no drilling required
  • 5-year warranty
  • Made in Britain

Technical Specifications


  1x Utility-25  1x Utility-25 MAXX
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Colour Temperature 5,000 Kelvin 5,000 Kelvin
Weight 360 gr 360 gr
HIGH BEAM FUNCTION
Total Luminous Flux 3016 Lm 4560 Lm
Colour Temperature 5000K 5000K
Power Consumption 25 Watts 45 Watts
Current Draw (at 14.4V) 1.6 Amps 3.1 Amps
Connector 2-Pin Deutsch DT (+28cm Cable) 2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating # IP68 / IP69K  IP68 / IP69K
EMC Standard ECE R10 ECE R10
EMC Protection CISPR-25
(Class 5)
CISPR-25
(Class 4)
Salt Spray Test ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2
OPERATING CONDITIONS
Operating Temperature -40deg C ... +90degC  -40deg C ... +90degC
Vibration (BS EN 60068-2-64) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
DIMENSIONS
Width 80 mm 80 mm
Depth 56 mm 56 mm
Height 80 mm 80 mm

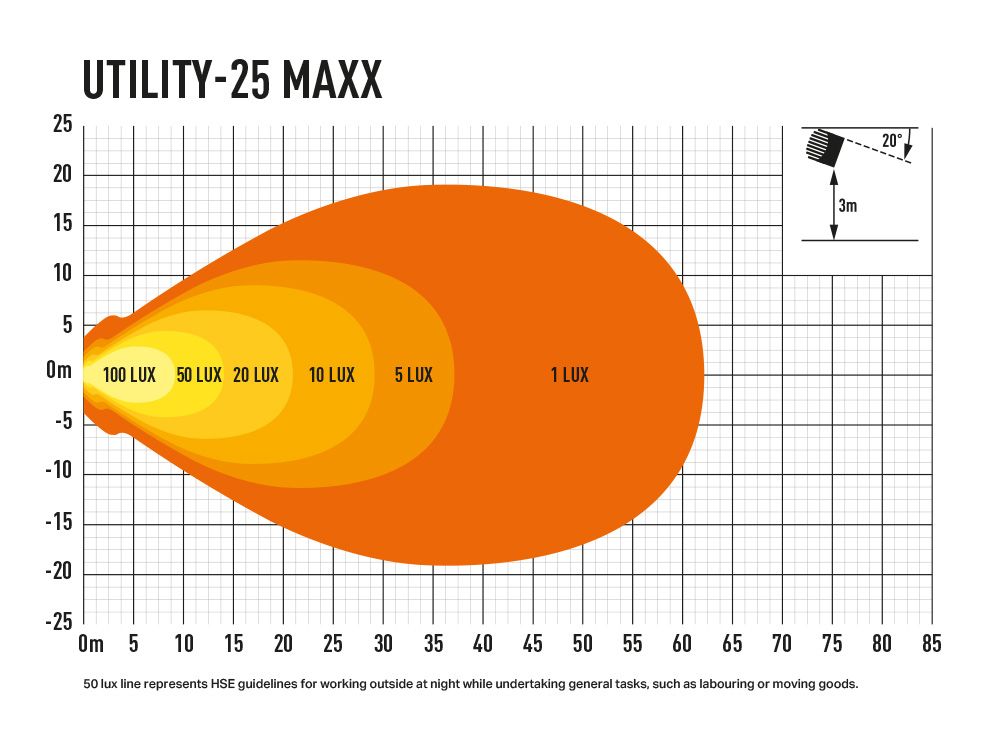

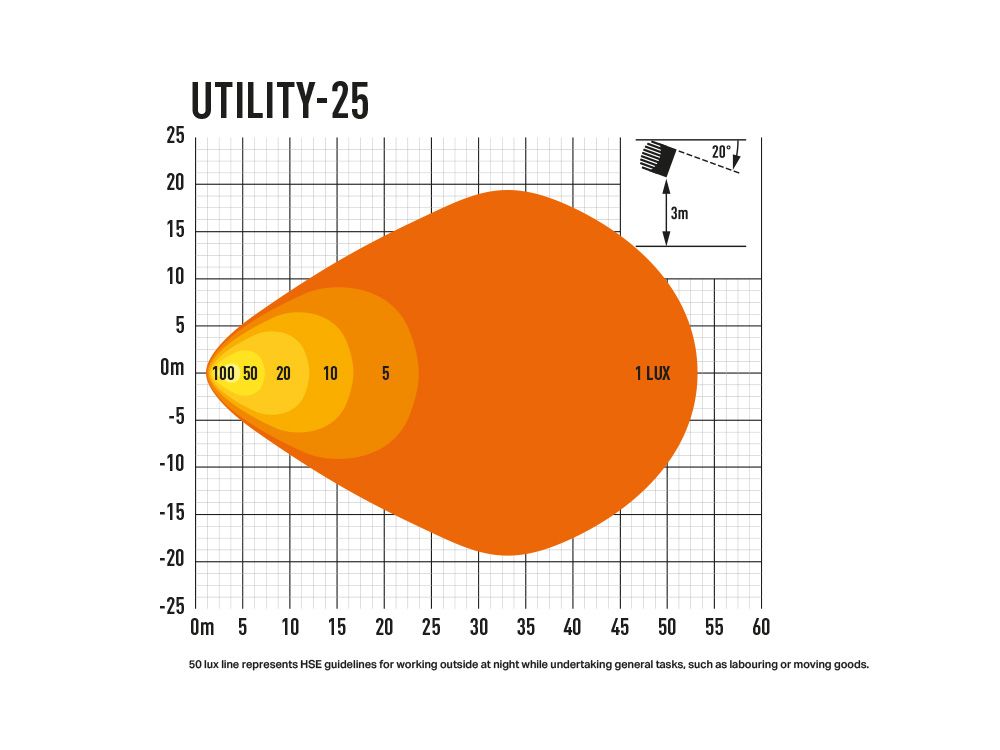

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 78o / 78o 78o / 78o
1 Lux 57m 71m
5 Lux 25m 32m
20 Lux 13m 16m
50 Lux * 8m* 10m*



* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.




What's Included

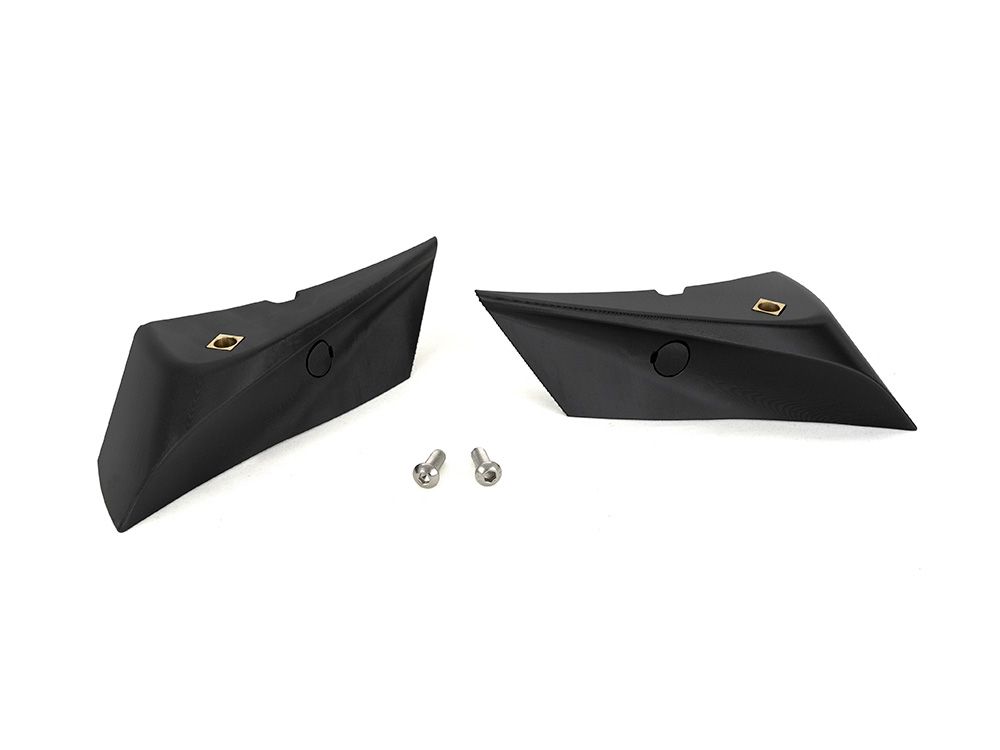

  • LH/RH Mounting Brackets
  • M6 Fasteners
