Triple-R Lights - INEOS Grenadier Grille Kit (GK-USGREN-ELITE-01K)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW
Upgrade the look and performance of your Ineos Grenadier with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

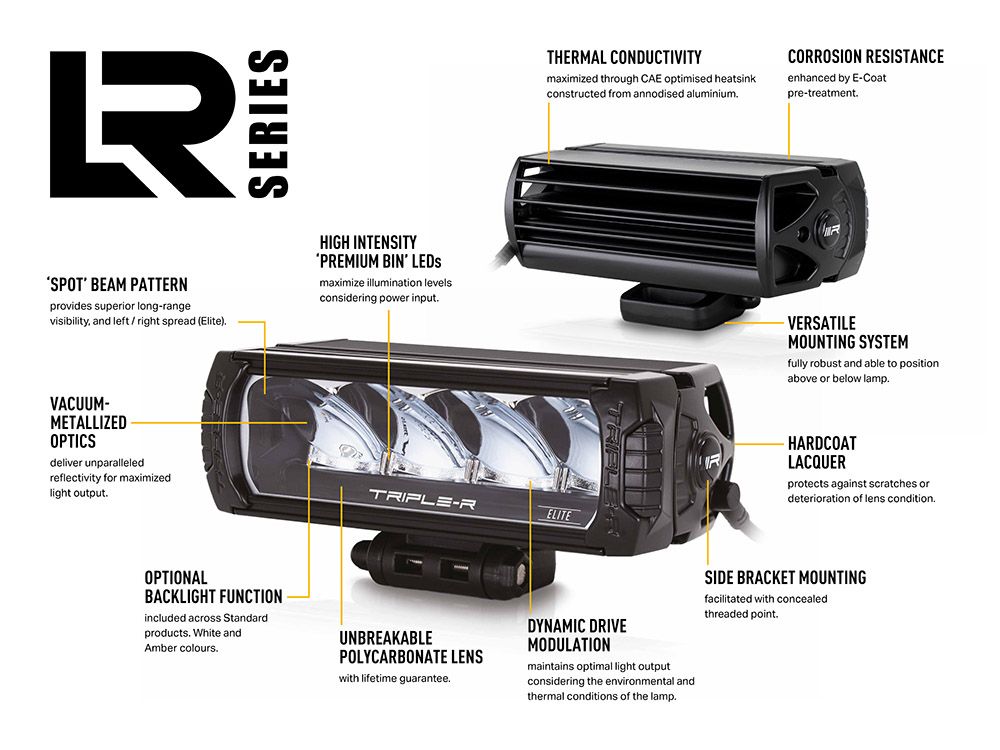

Each kit includes a pair of LR-750 High Performance LED driving lights, available in three variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated backlight function. Designed for versatility, the Beacon variant has an integrated amber beacon and Backlight function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.
The LR-750 Elite and LR-750 Beacon features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of the lamps Boost Cap (Elite) or via Flash-to-dim (Beacon), allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws.

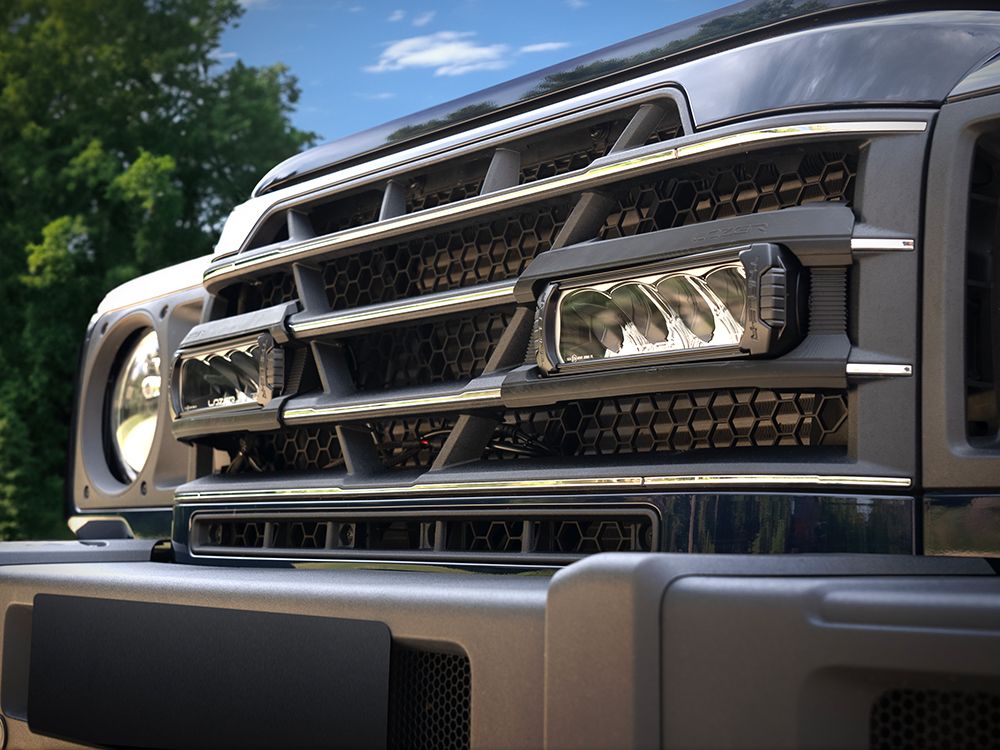

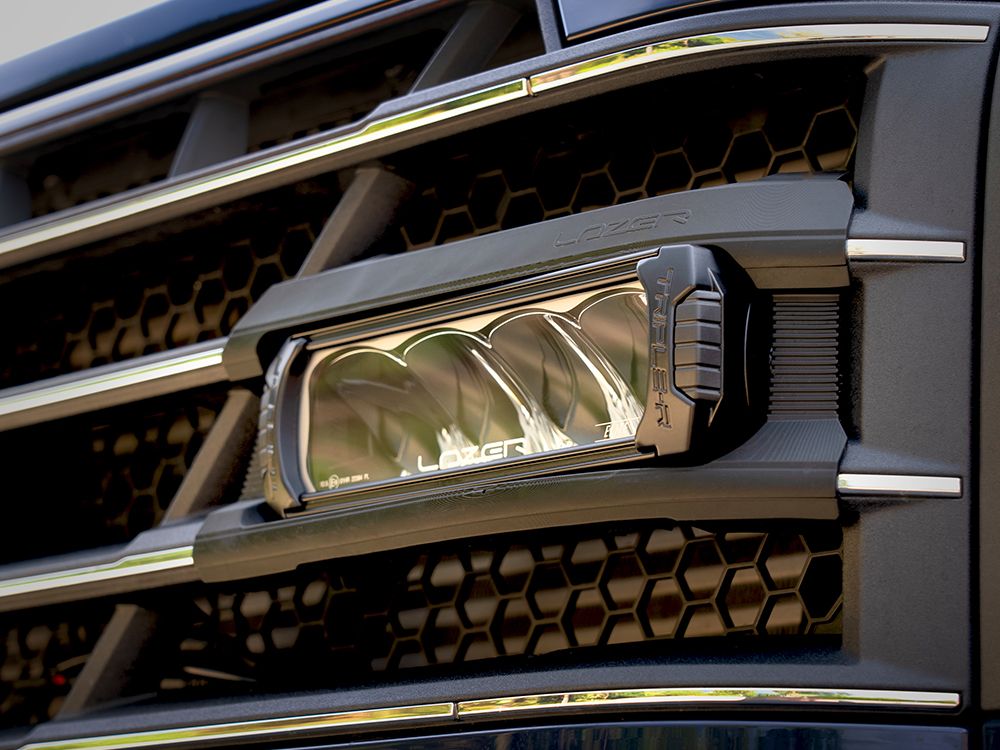

The lights are mounted using two precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.
Please note: The Ineos Grenadier Grille Integration Kit is carefully engineered and optimised for use with LR-750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.
Product Features
- Bespoke vehicle integration kit for Triple-R Lights LED light installation
- Custom fit for Ineos Grenadier
- Available with: LR-750 High Performance LED lights
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, composite material
- 5-year warranty
- Made in Britain
Technical Specifications
|
2x |
2x LR-750 |
2x LR-750 |
|
|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 5.7 lbs | 5.7 lbs | 5.7 lbs |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 9240 Lm | 10800 Lm |
10136 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm | 2484 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K | 5000K |
| Power Consumption | 88 Watts | 104 Watts | 104 Watts |
| Current Draw (14.4V) | 6.2 Amps | 7.4 Amps | 7.2 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) |
6-Pin Superseal (+25cm Cable) |
2-Pin Superseal (+25cm Cable) |
| CERTIFICATION | |||
| IP Rating # | IP68 | IP68 | IP68 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
| PHOTOMETRIC DATA | |||
| Horizontal / Vertical Beam Angle | 19° / 18° | 28° / 16° | 42° / 13° |
| 0.25 Lux | 1225m | 1249m | 1358m |
| 0.5 Lux | 866m | 883m | 960m |
| 1 Lux | 612m | 624m | 679m |
| 3 Lux | 354m | 361m | 392m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
What's Included

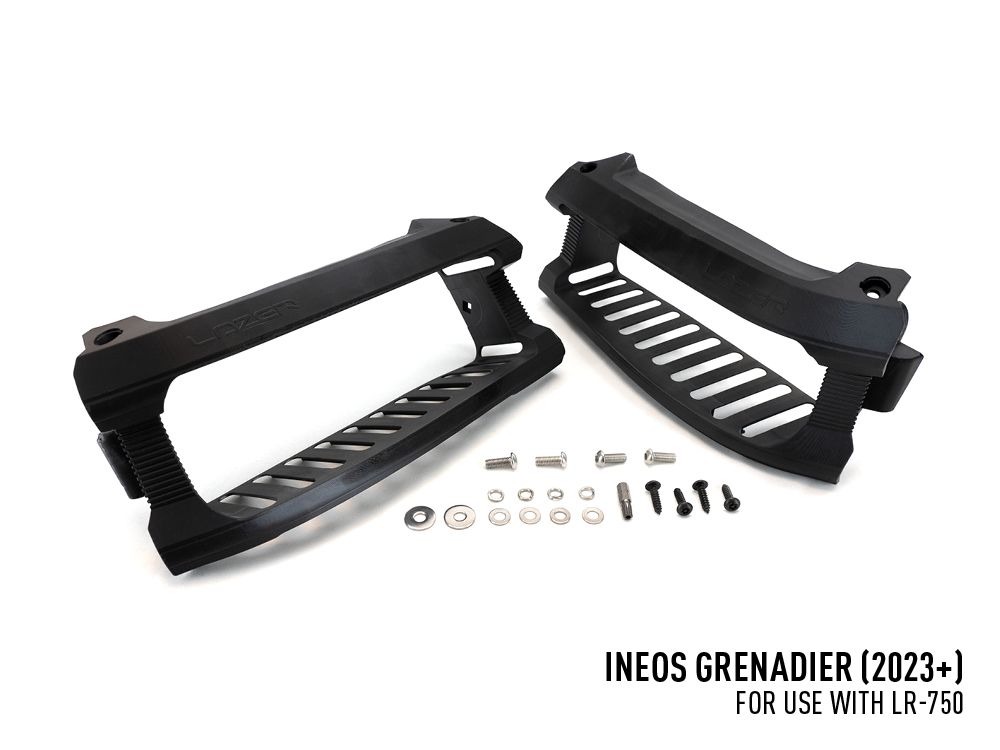

- 1x Grille Mounting Kit (includes cutting guides)
- 2x LR-750 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
