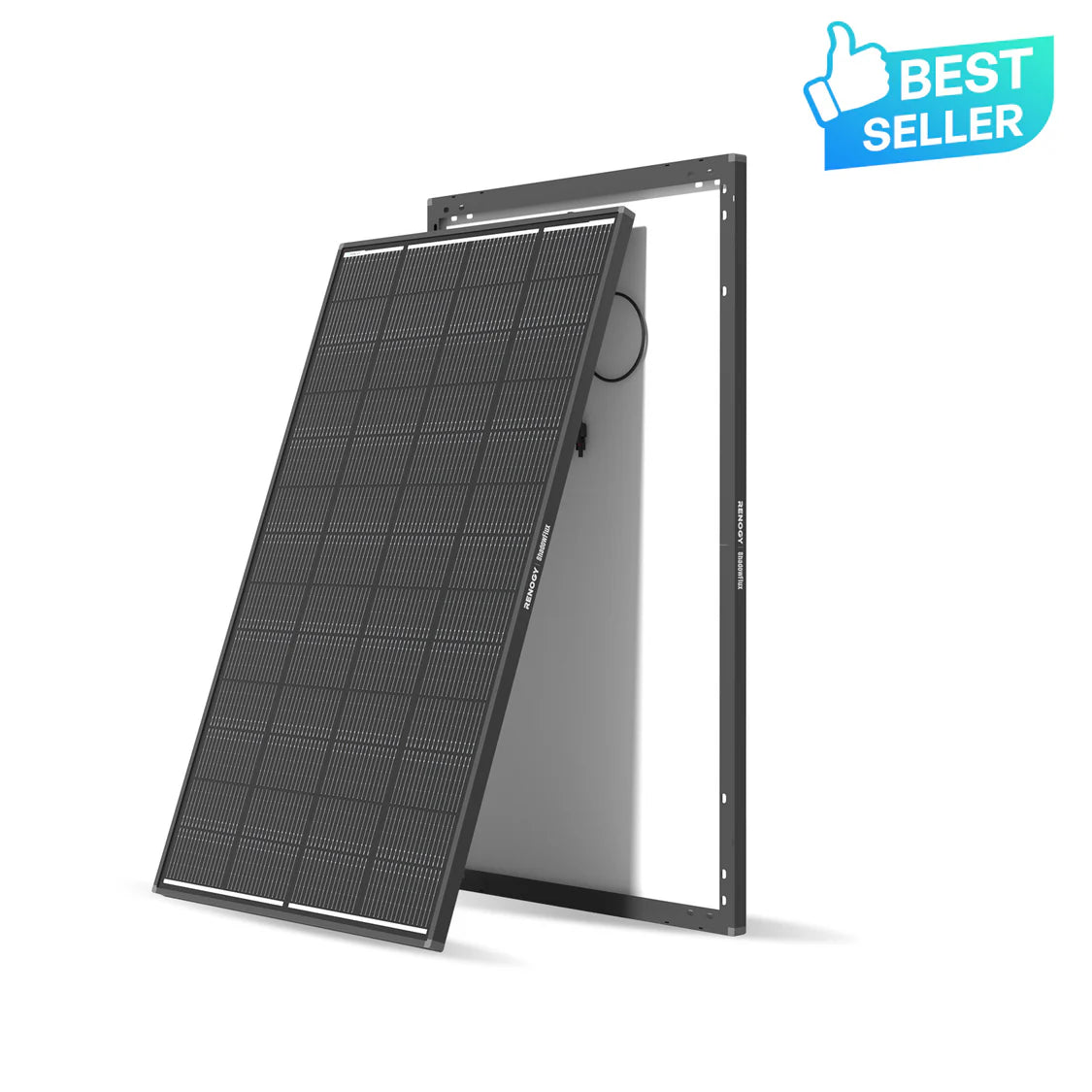

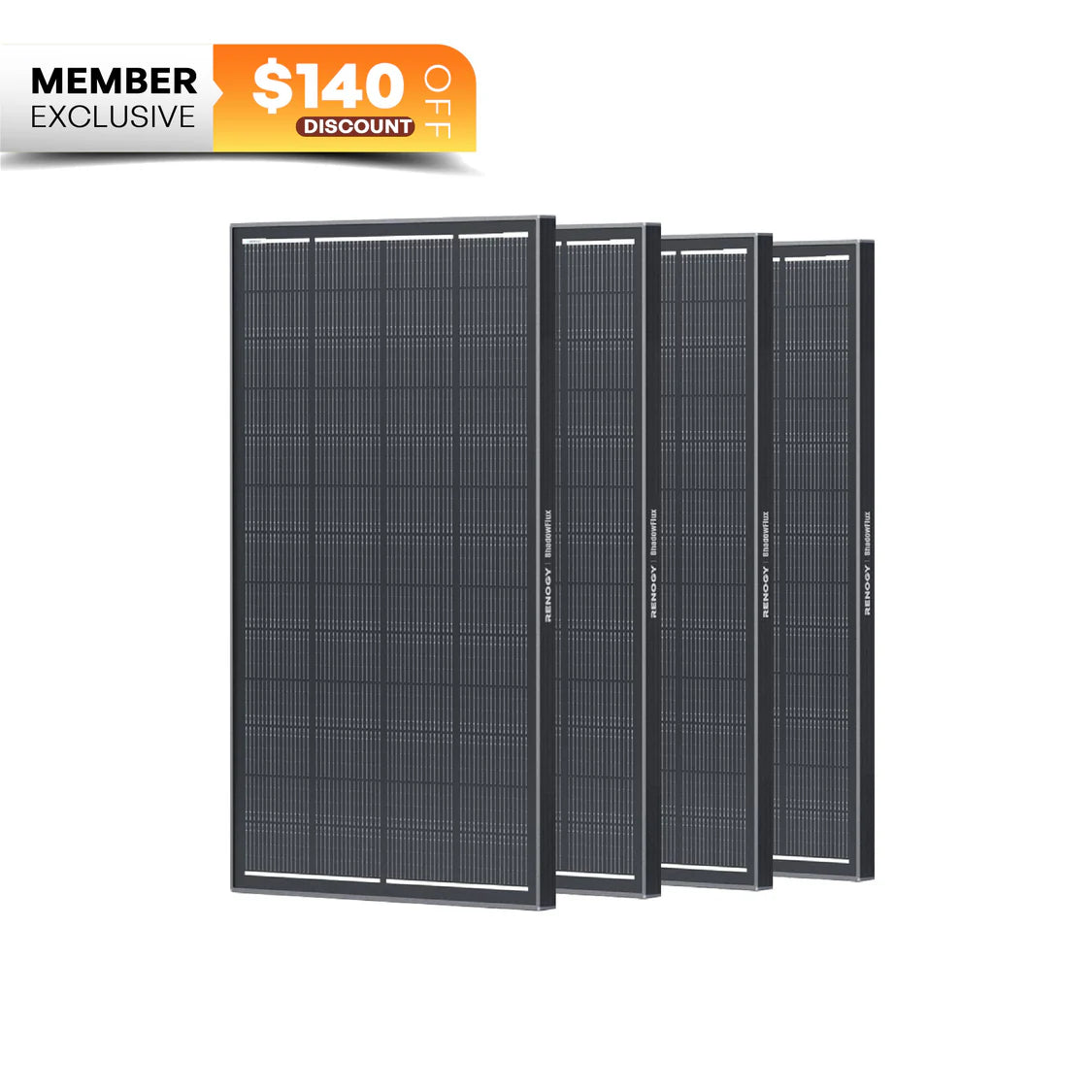

Renogy - ShadowFlux™ N-Type Anti-Shading 200W 120W Solar Panel (RSP200DC-ASR-US)

At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.

OVERVIEW

• Maximizes output in partial shading with ShadowFlux technology.
• -25% efficiency with anti-hotspot tech for less overheating.
• -7% smaller, 10% lighter than other panels for easy install.
• -Rated ≥IP67 for protection against to water, dust, and stress.
• -Consistent 36.5V VOC output - even when partially shaded.

ShadowFlux Solar Panel

World's First Anti-shading Solar Panel

Perfect for...

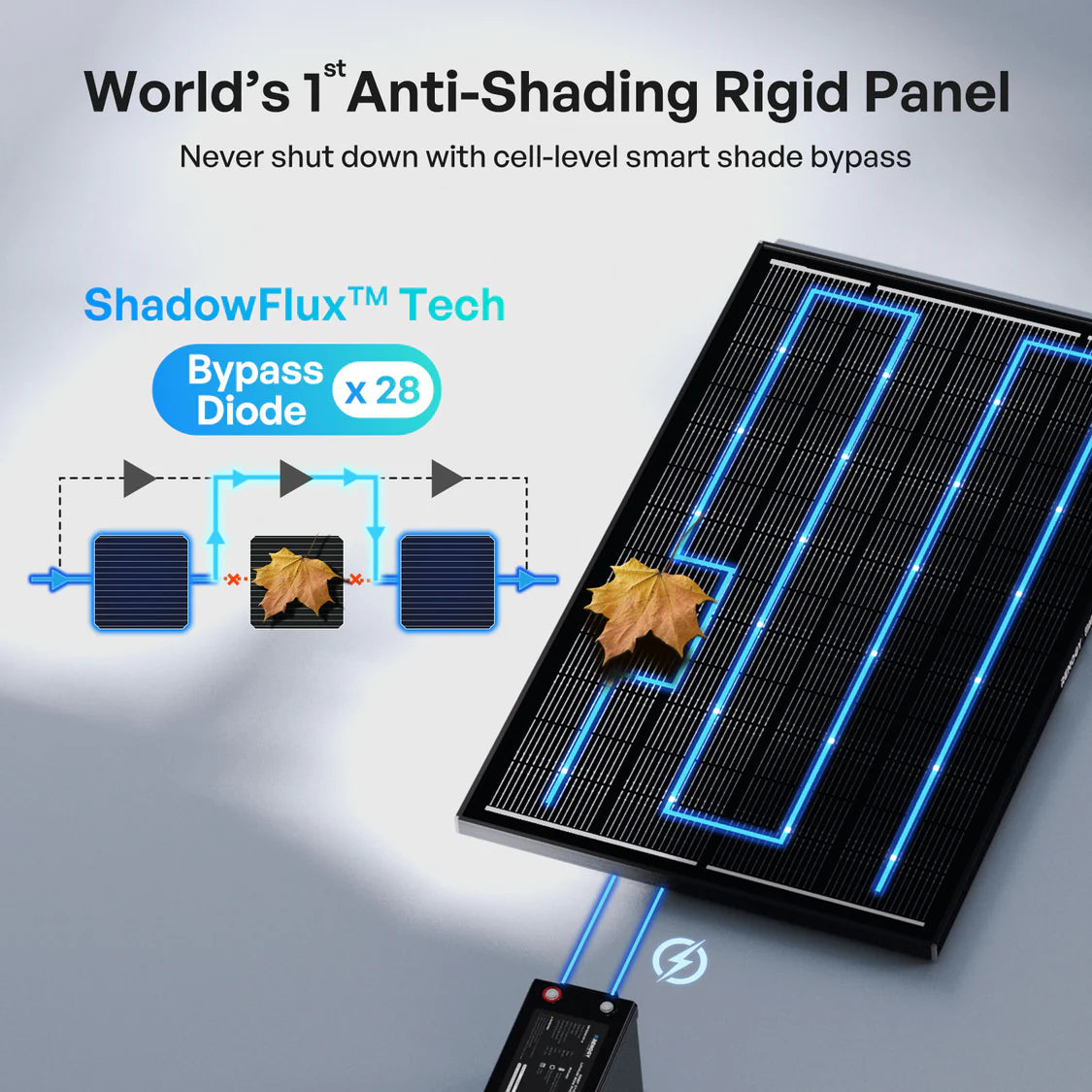

The World's 1ˢᵗ Anti-Shading Rigid Panel

Power Longer, Save More

Keep generating max power even when shaded—saving more on every bill. No damaging hotspots, longer panel life, and way less cleaning required.

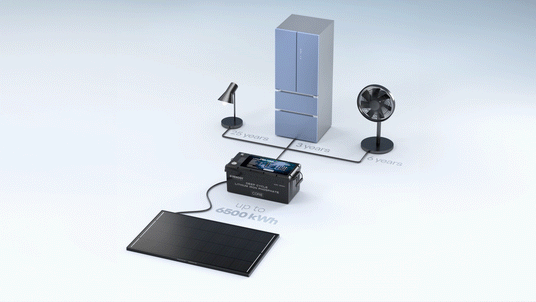

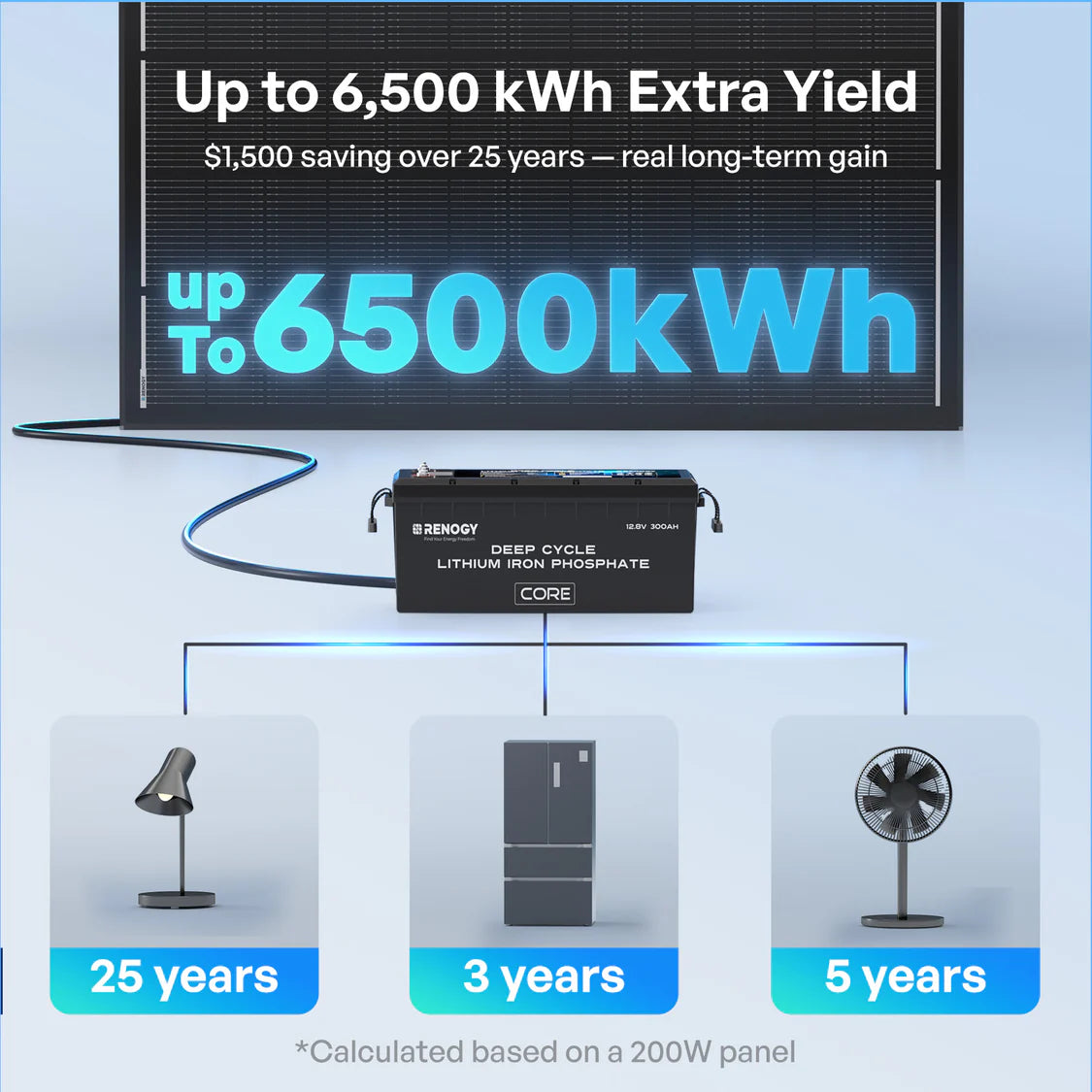

$1,500 Saving from Extra Power

When traditional panels drop to near-zero from shade, ShadowFlux™ maintains up to 85% output. That's 6,500 kWh* saved over your system's lifetime—worth $1,500 in electricity bills!

*Calculated based on a 200W panel

5 Years Longer Lifespan

ShadowFlux™ prevents shaded areas from overheating and slowing down your entire system. Your panels stay cooler, last longer, and keep saving you money year after year.

*Lifespan depends on actual use

Zero Hassle, Worry Free

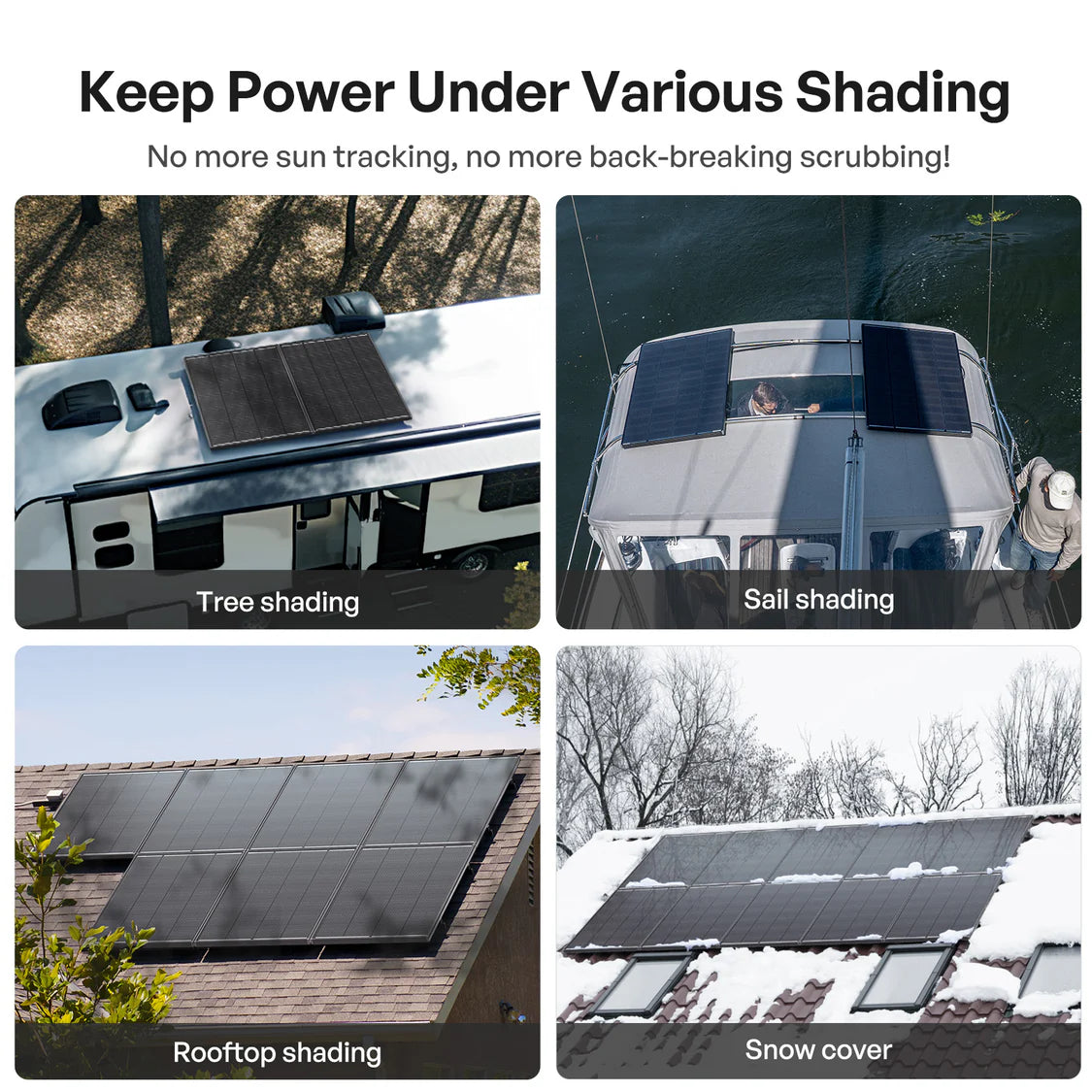

ShadowFlux keeps producing power even when partially shaded—no more surprise outages from passing shadows! Forget constantly adjusting panels or cleaning off every little debris.

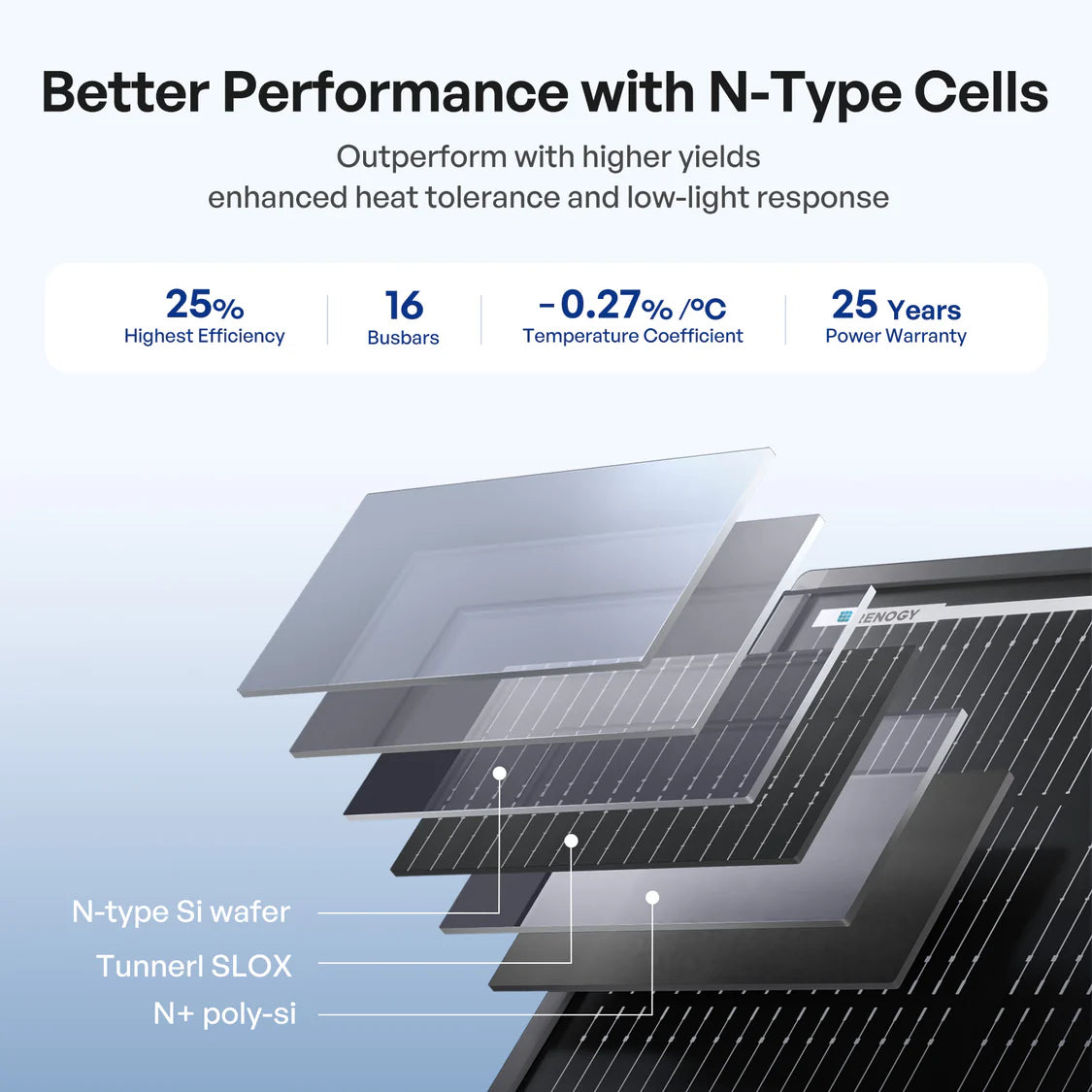

Next-Gen Cells, Better Performance

ShadowFlux features premium N-type cells that outperform in all conditions - higher daily yields.extreme heat tolerance, and enhanced low-light response.

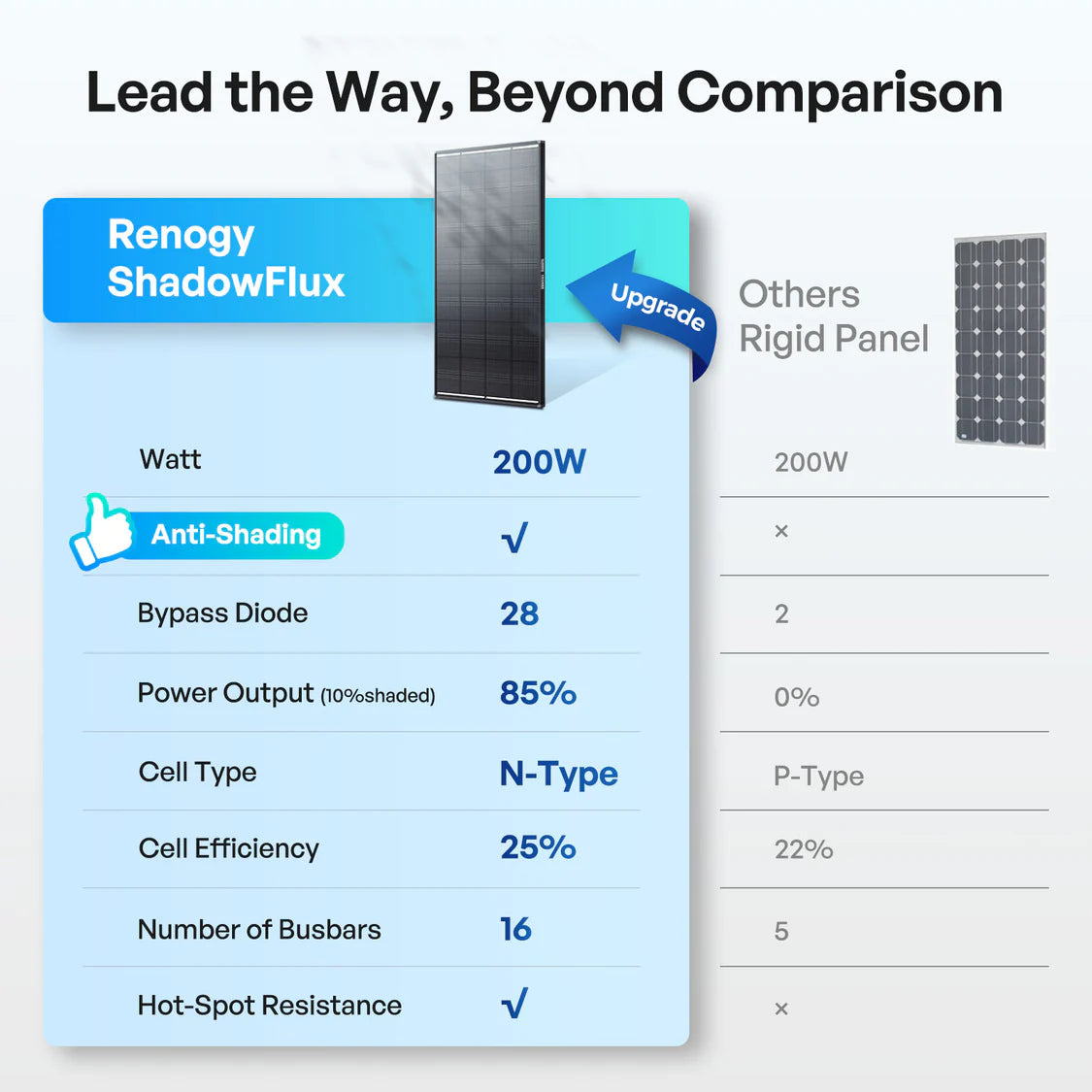

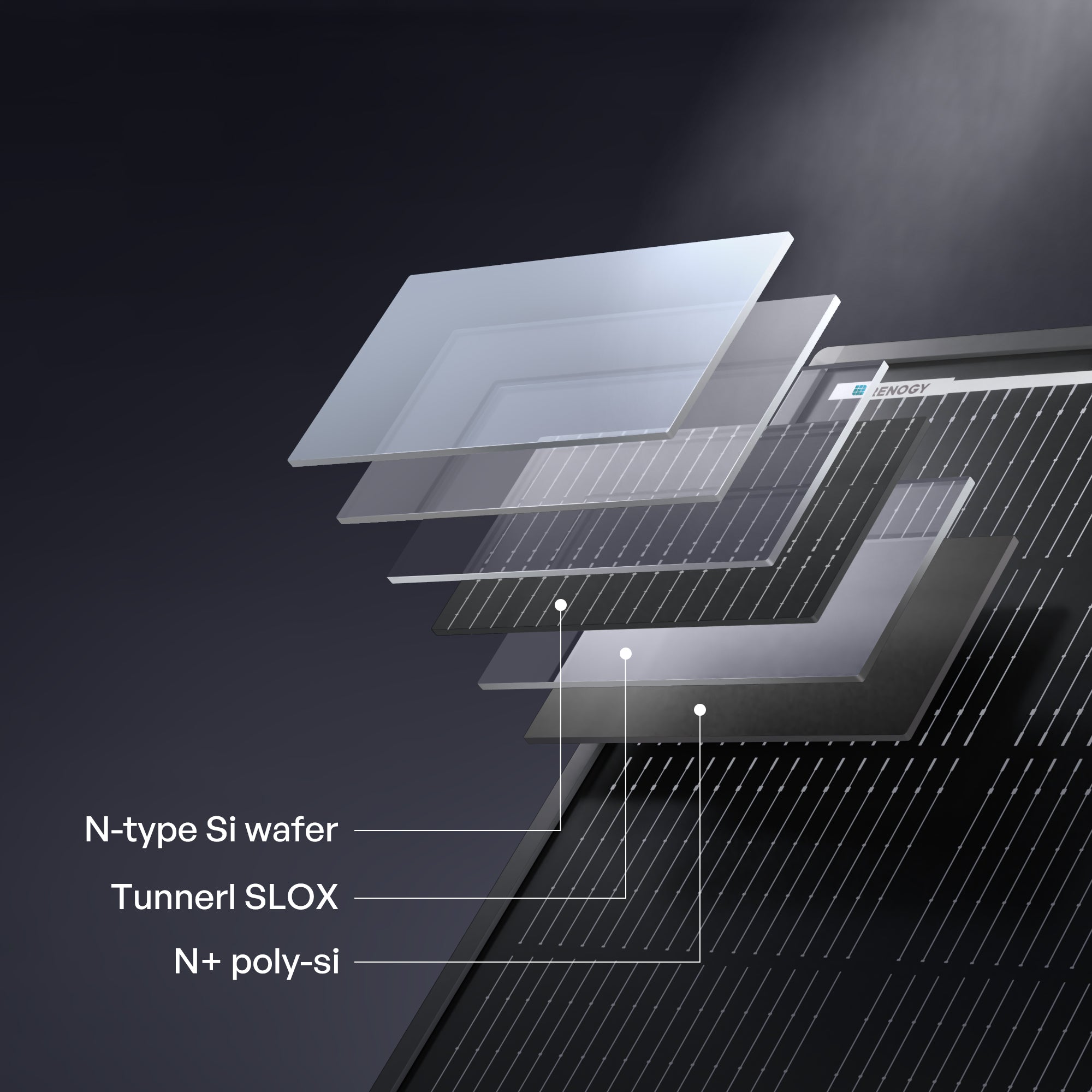

25% Highest Cell Efficiency

Outperforms P-type cells by15% powergeneration in the same size.

16 Busbars Ultra-Fine Grid-lines

Better PerformanceAt Hot Temp

More Energy In Low Light

Charge Faster with Highest Efficiency

Get the highest efficiency available in consumer silicon solar panels. Pair with MPPT controllers for even better charging performance.

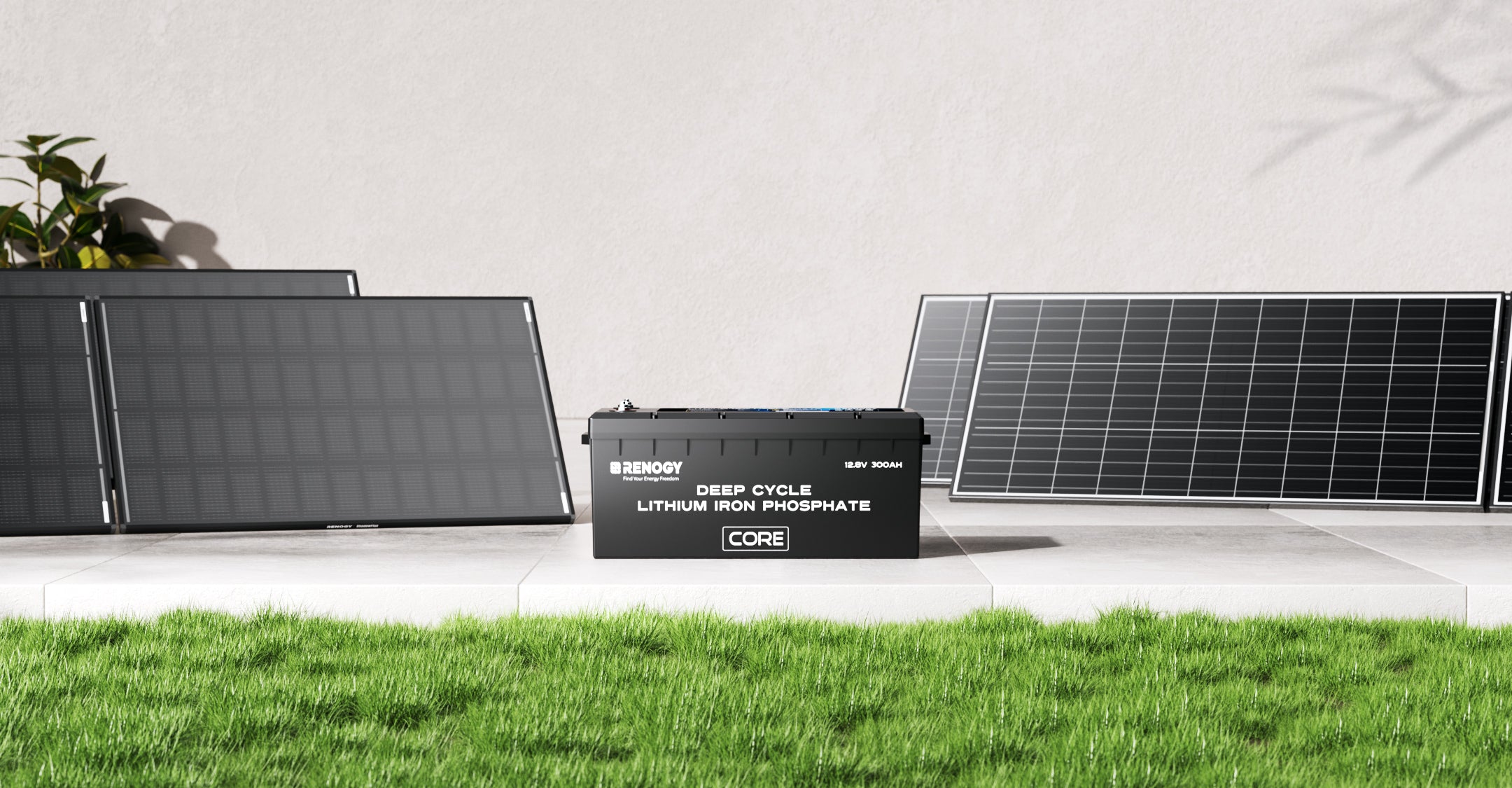

Full Sunshine

Daily charging is based on 5 hours of peak sunlight with 20% system losses.

25% Shaded

Tight Space, Big Power

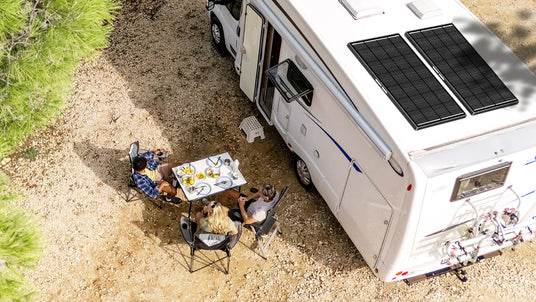

Limited on space? We've got you covered. ShadowFlux gives you more watts per square foot — perfect for your RV, rooftop, or boat.

Specification

Max Power at STC	200W	120W
Open Circuit Voltage	36.5V	33.69V
Short Circuit Current	6.86A	4.57 A
Optimum Operating Voltage	31.3V	28.89V
Optimum Operating Current	6.38A	4.21A
Operating Temperature	-40°F~185°F / -40℃~85℃	-40°F~185°F / -40℃~85℃
Maximum System Voltage	1000 VDC	1000 VDC
Cell Type	N-Type Cell	N-Type Cell
Cell Efficiency	25%	25%
Busbar	16 Busbar	16 Busbar
Anti-shading Tech	Cell-level Shadow Management Tech	Cell-level Shadow Management Tech
Maximum Series Fuse Rating	15A	15A
Weight	10.81kg/23.83lb	6.80kg/15.87lb
Dimension	49.69*30.08*1.18inch	1052*578*30mm/41.42*22.76*1.18inch
Protection Rating	IP 67	IP 67
