Renogy - Core - 12V 100Ah Trolling Motor Lithium Iron Phosphate Battery with Bluetooth (RBT12100LFP-TM-BT-S-US)
- Shipping or Pick Up in Store Available
- Available Monday - Friday 9AM - 6PM PST
- Need Installation? Contact Us
DESCRIPTION
At West Coast Off-Roaders we pride ourselves in giving you the best advice to ensure that you purchase the right product to suit your specific needs, as well as ensure that it is the right fit or application for your vehicle. For expert advice, pricing, shipping and an accurate ETA, please give us a call on 604 770 1252 or contact us via the contact page on this website.
------------
OVERVIEW
- 150A continuous, 300A @30s discharge. Supports 12V-36V trolling motors.
- 21.83 lbs, half lead-acid weight. Group 24, 1/3 smaller than Group 31.
- IP67 waterproof with marine-grade protection.
- Bluetooth 5.3 for remote monitoring. 150A BMS with low-temp cut-off.
- Compatible with electric outboards, workshops, RVs, and off-road systems.

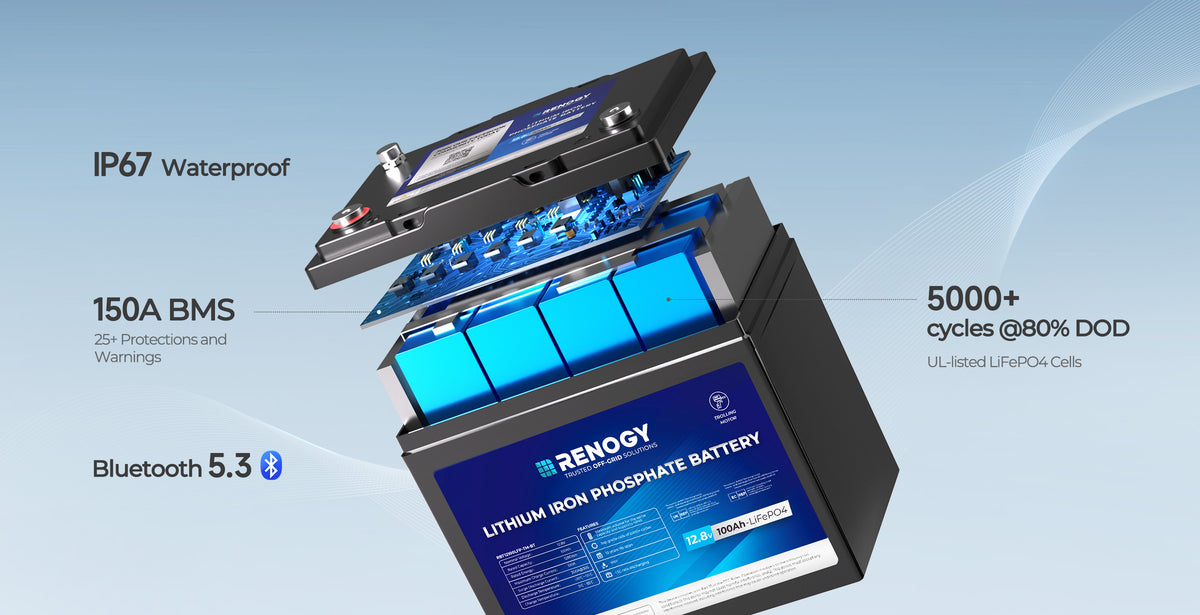

Inside the Renogy 12V 100Ah Trolling Motor LiFePO4
Real-Time Monitoring with Bluetooth 5.3
The built-in Bluetooth 5.3 enables real-time power tracking via the Renogy App, allowing you to access information such as system overview, fault alerts, and battery status.
Ready for Any Environment
Renogy’s rugged design offers advanced safety, superior moisture resistance for outdoor use, longer life span, and seamless real-time monitoring – all in one compact battery.

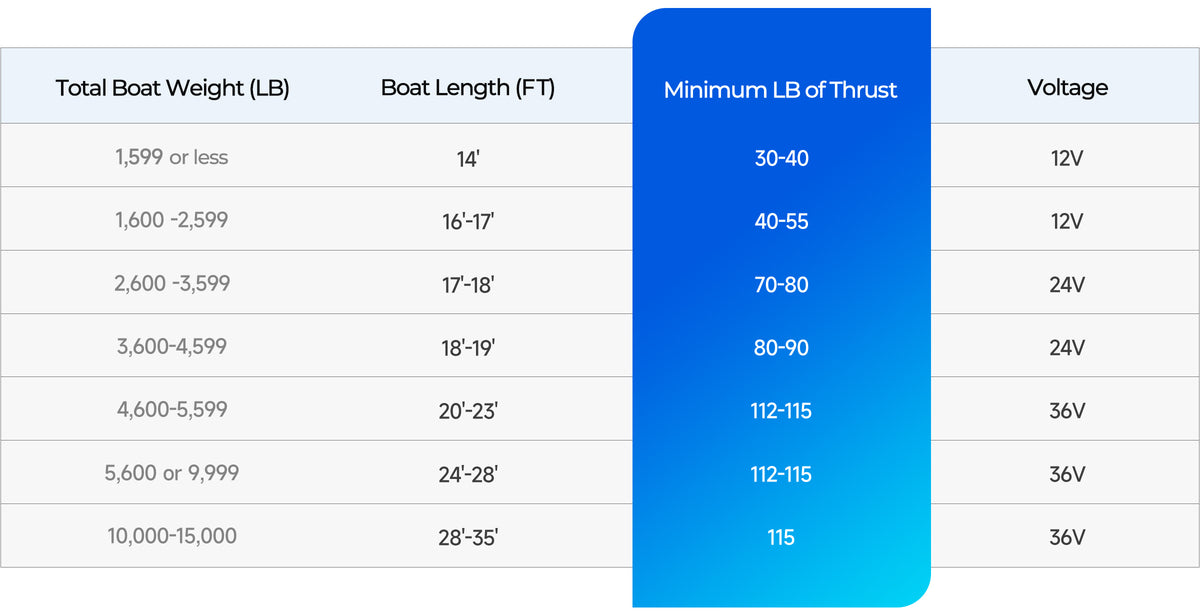

Made for Trolling Motors
Fully compatible with Minn Kota and other major trolling motor brands. Run a single battery for 30-55 lb motors, two in series for 70-90 lb motors, or three in series for 112-115 lb motors.
Scalable Power, Flexible Setup
Build your ideal power system with up to 4 batteries in series and 4 in parallel (4P4S), delivering up to 20.48kWh. Great for trolling motors, RVs, workshops, and off-road systems. Can adapt to various setup.
World-Class Standards, Rigorously Tested
The Renogy 12V 100Ah Trolling Motor LiFePO4 Battery meets global safety certifications, including MSDS, UN38.3, IC, FCC, CE, PSE, RCM, RoHS, and UKCA. Each unit undergoes thorough testing to ensure the reliable performance you can trust.
- 12V 100Ah Lithium Iron Phosphate Battery x 1
- Long Terminal Bolts x 2
- Insulating Sleeve x 2
- User Manual x 1
12V 100Ah Trolling Motor Lithium Iron Phosphate Battery with Bluetooth
Electrical Specifications
| Specification | Details |
|---|---|
| Rated Capacity | 100Ah (0.5C, 25℃) |
| Voltage | 12V |
| Energy | 1280Wh |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD) |
Temperature Parameters
| Parameter | Details |
|---|---|
| Operation Temperature Range |
Charge: 32°F to 131°F (0°C to 55°C) Discharge: -4°F to 131°F (-20°C to 55°C) |
| Storage Temperature Range | 32°F to 113°F (0°C to 45°C) |
| Operation Relative Humidity | 5% to 95% |
Charging Parameters
| Parameter | Details |
|---|---|
| Voltage Range | 10.8V to 14.8V |
| Maximum Continuous Charge Current | 100A |
Discharging Parameters
| Parameter | Details |
|---|---|
| Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 300A @ 30s |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (L × W × H) | 10.24 × 6.61 × 8.23 in (260 × 168 × 209 mm) |
| Weight | 21.83 lbs (9.9 kg) |
| Terminal Bolt Size | M8 × 1.25 × 12 mm |
| Protection Rating | IP67 |
Certifications
| Certification | Available |
|---|---|
| RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA | Yes |
Warranty
| Type | Coverage |
|---|---|
| Material and Workmanship Warranty | 5 Years |
